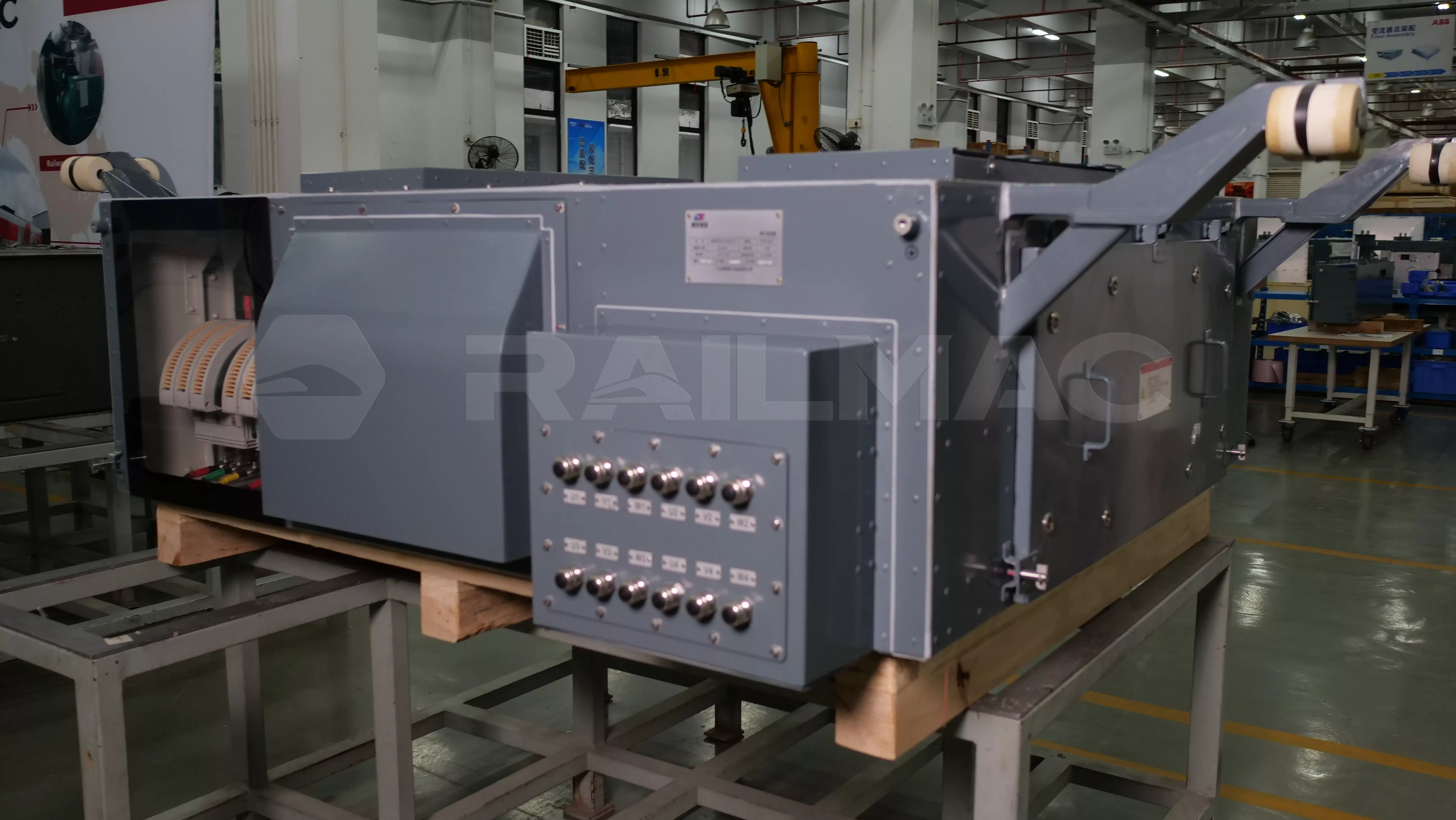

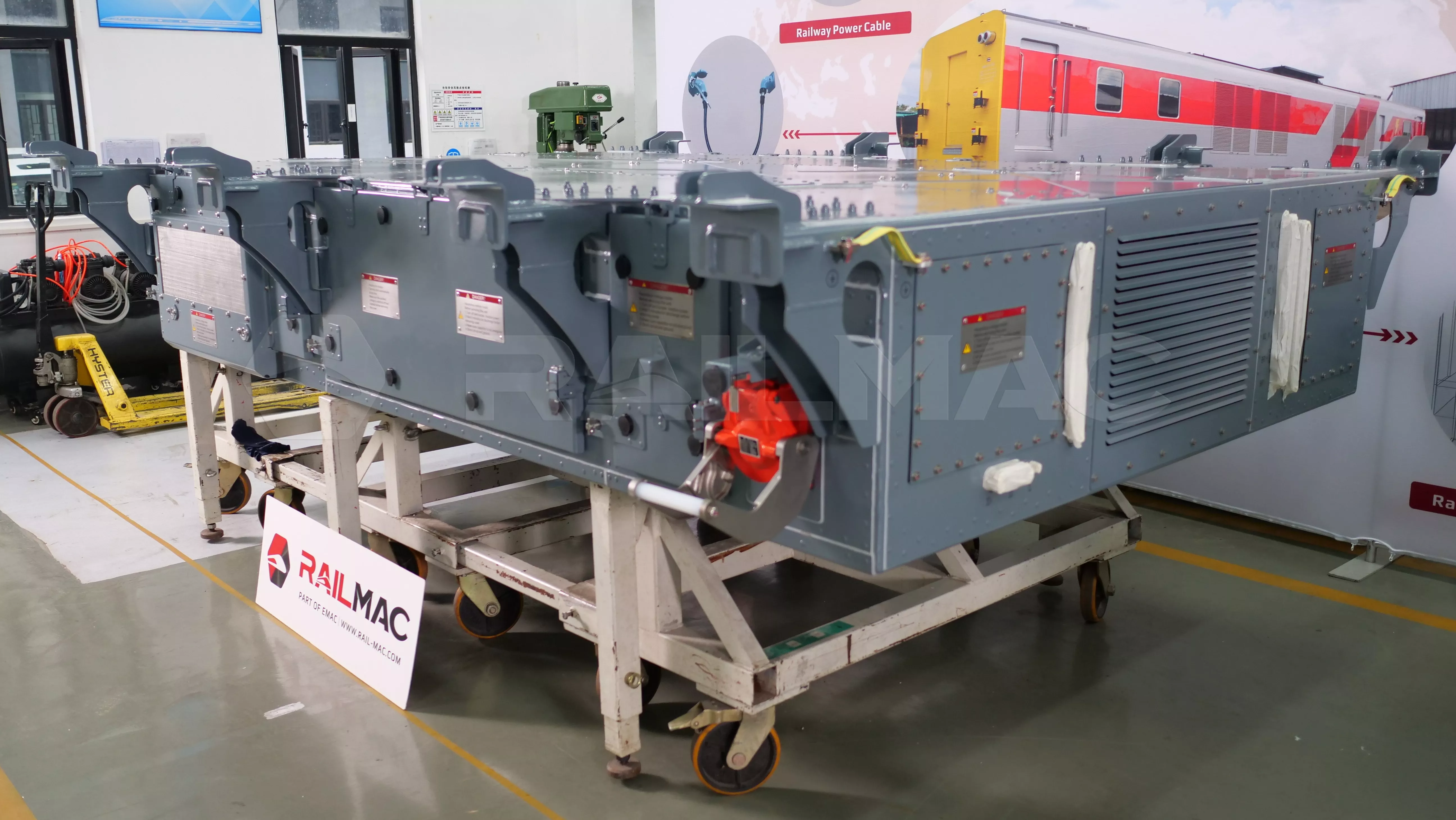

RailMac CHSR™CC750 Air-cooled Converter (Intercity railway)
This dedicated air-cooled converter system for intercity railways offers two configuration models: CHSRTMCC750_DC_3000V_U (contact grid power supply) and CHSRTMCC750_DE_3000V_U (internal combustion power pack power supply), compatible with 3000 VDC input voltage. It integrates traction and auxiliary functions in a single unit, delivering a traction rated output of 2×600 kW (@ wheel) and 3-channel 400V/50 Hz auxiliary power with 180 kVA capacity. Equipped with a 110 VDC battery charger (19 kW or 25 kW options), it adopts undercarriage mounting and forced air cooling for stable operation. The integrated unit features compact dimensions: 3280×2000×660 mm for contact grid supply and 2580×2000×660 mm for internal combustion power pack supply, ideal for intercity railway vehicle applications.
Features of CHSR™CC750 Air-cooled Converter (Intercity railway)

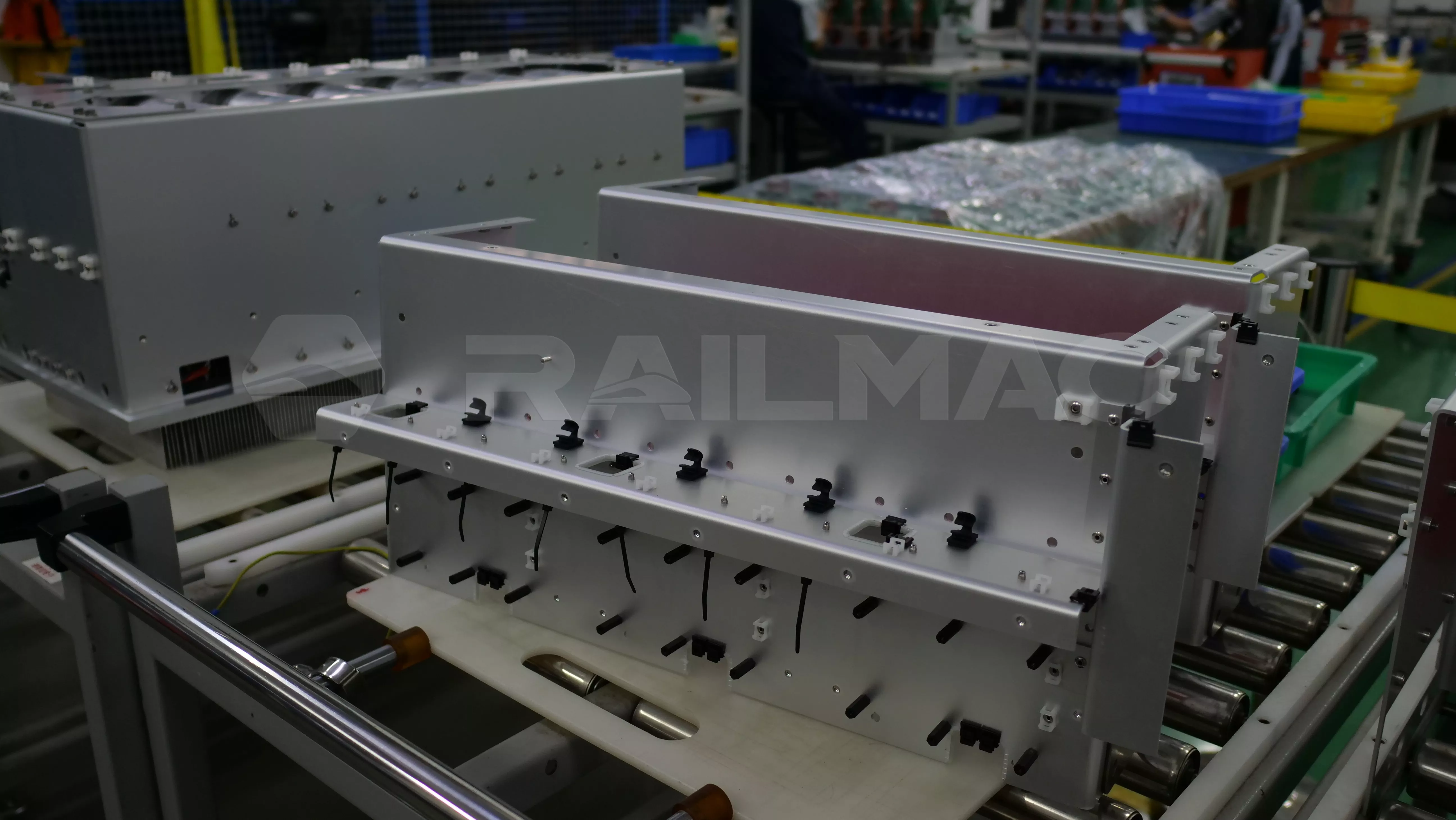

Compact, lightweight.

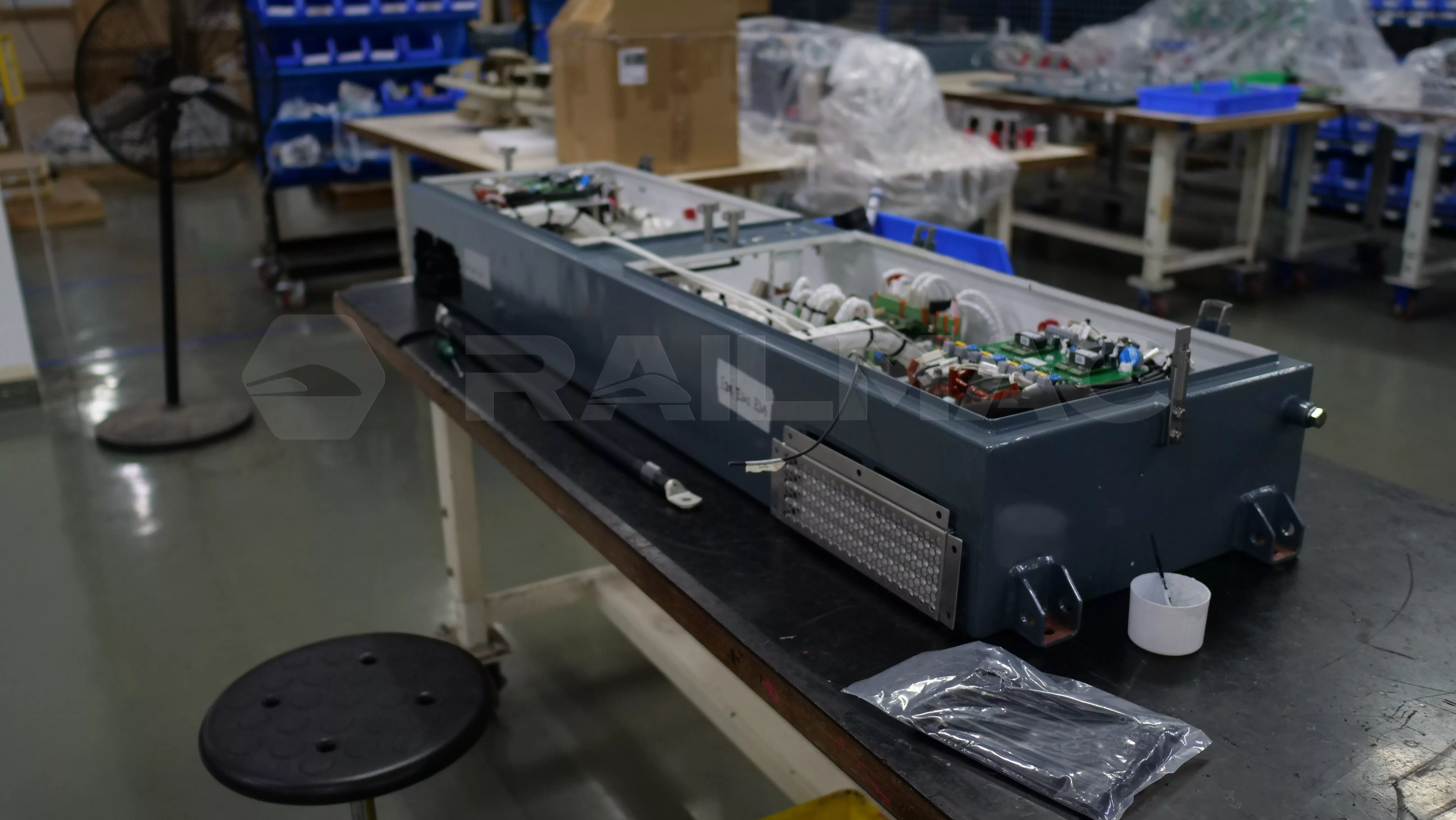

Integration of all reactor and transformer equipment, reducing the number of equipment boxes and system weight..
Integrated traction and auxiliary, or separate traction and auxiliary ..

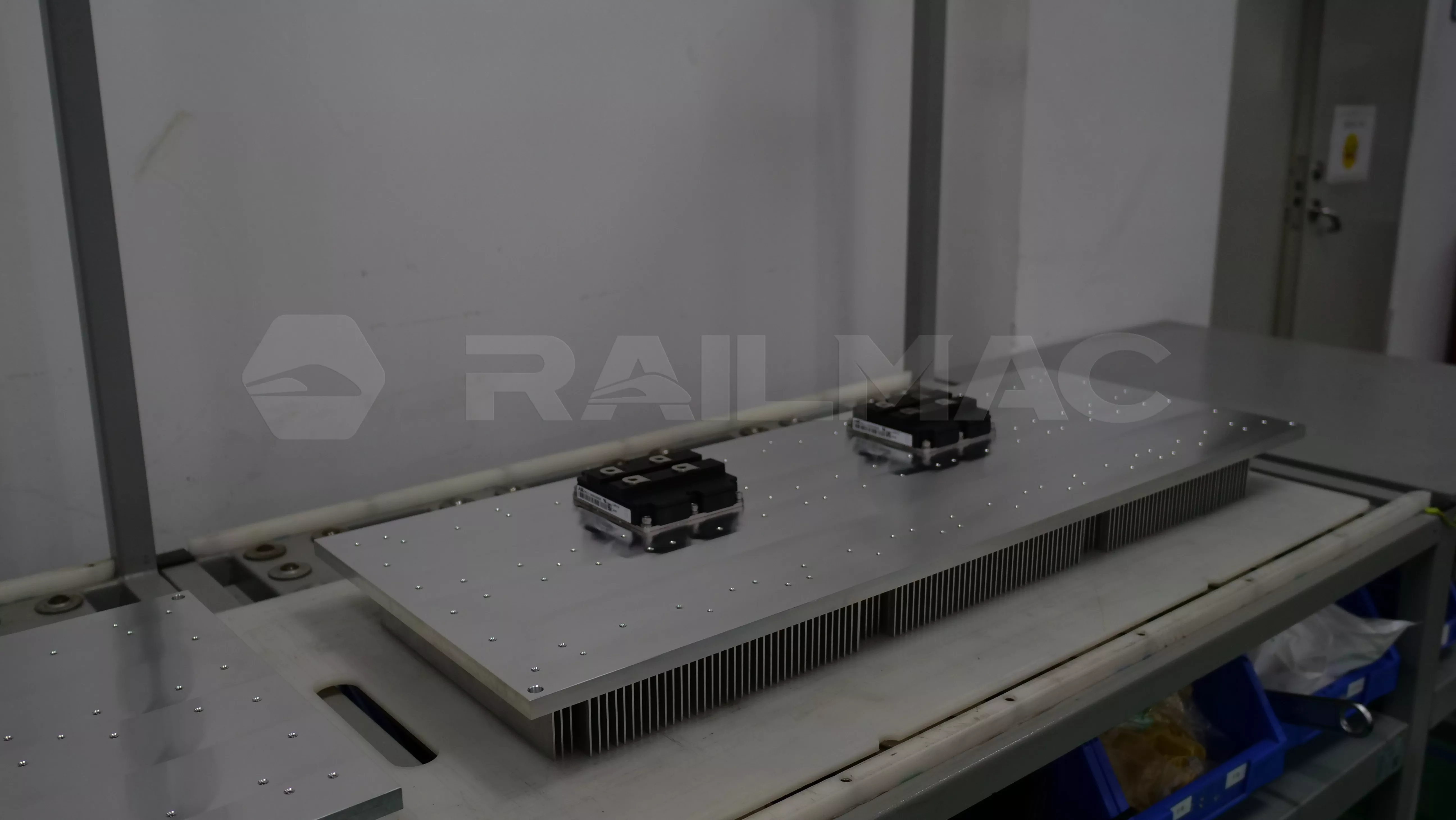

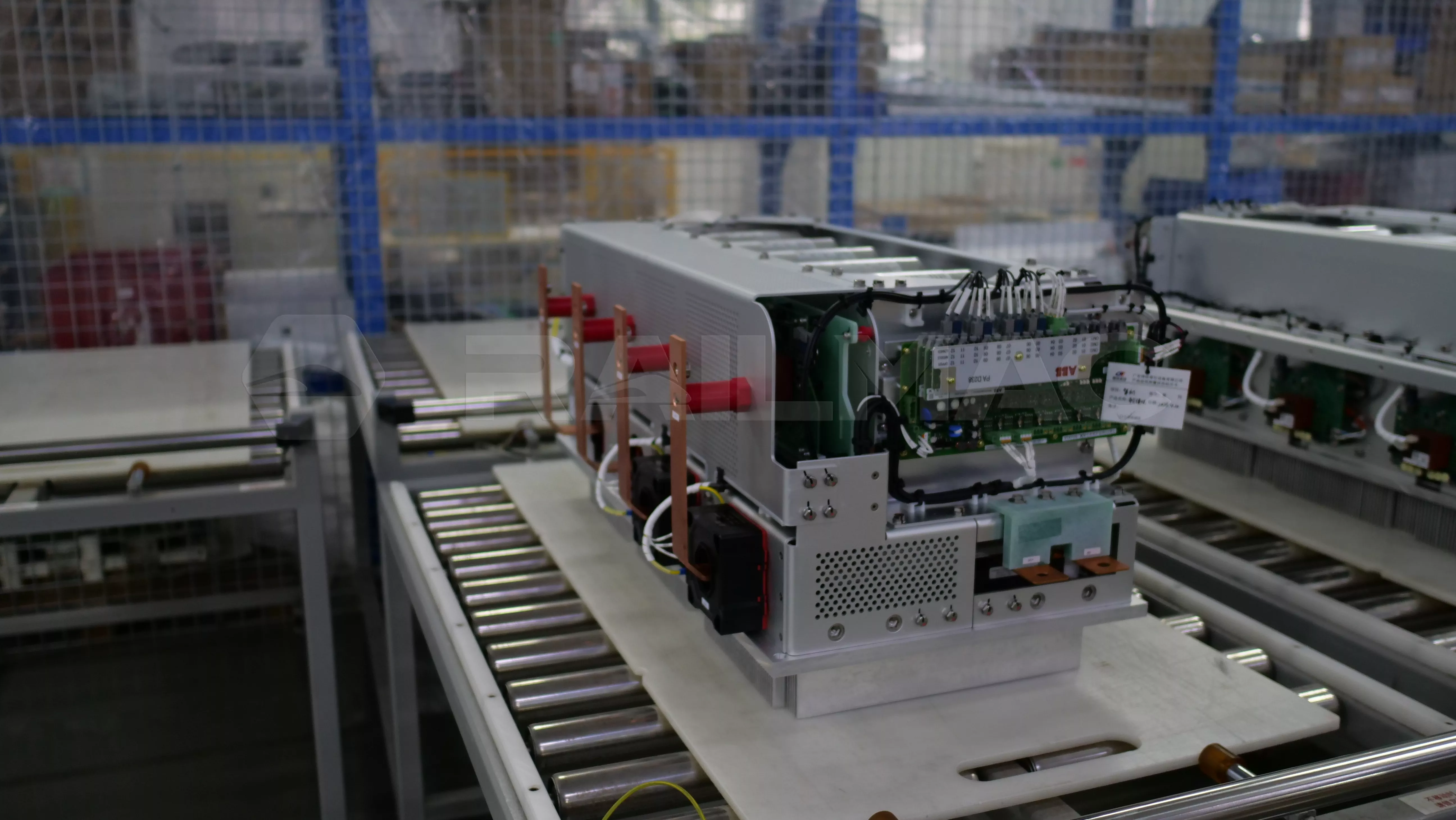

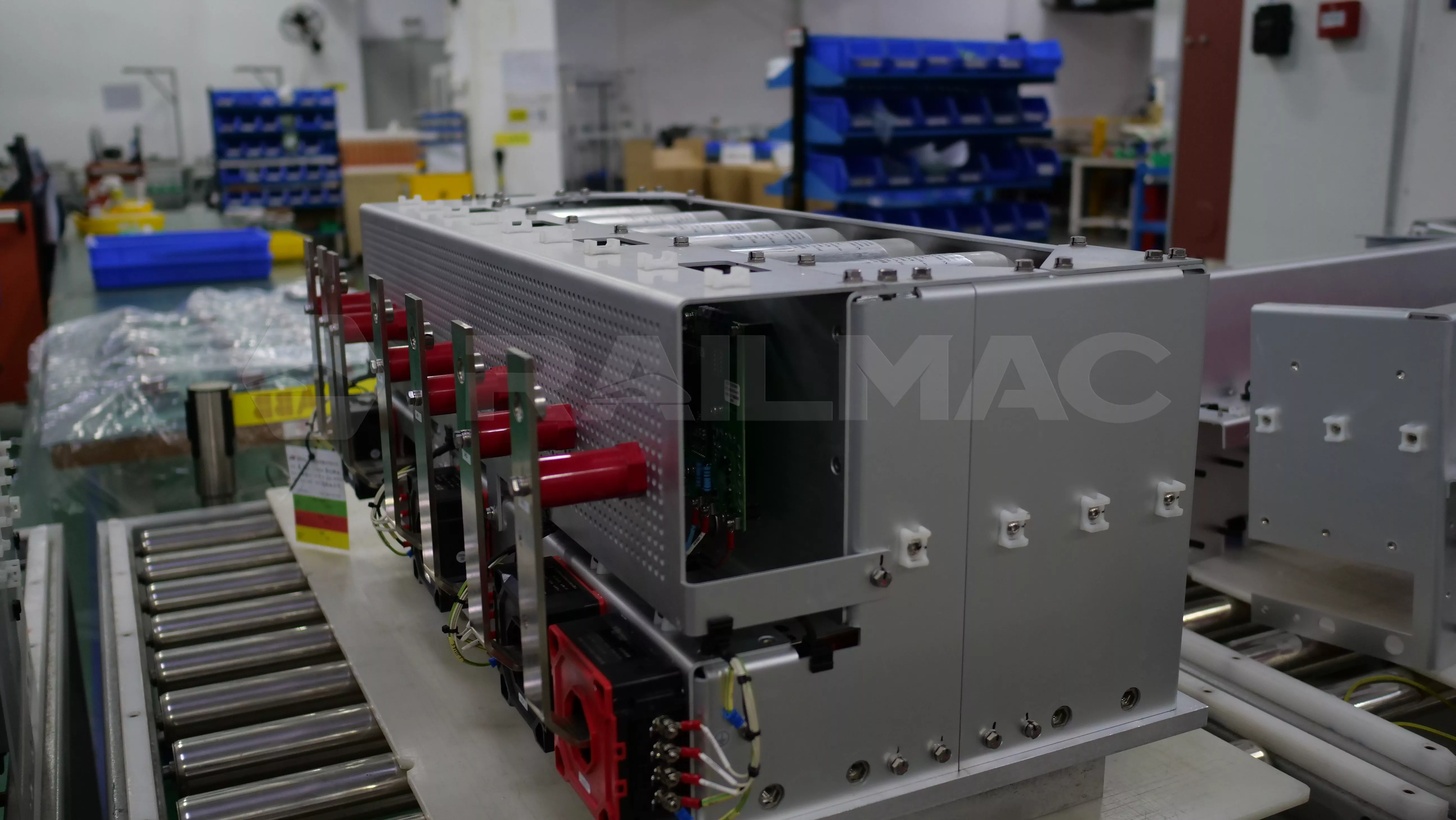

Highly-integrated forced air cooling design can effectively improve heat dissipation efficiency.
Suitable for DC, AC, internal combustion and other power supply systems, as well as vehicle control, frame control and other control modes.
CHSR™CC750 Air-cooled Converter (Intercity railway) technical parameter table
| Models: | CHSRTMCC750_DC_3000V_U(Contact grid power supply) CHSRTMCC750_DE_3000V_U(Internal combustion powerpack power supply) |
| Input voltage: | 3000 VDC |
| Traction rated output: | 2 ×600 kW(@ wheel) |
| Auxiliary rated output: | 3 ×400 V/ 50 Hz/180 kVA |
| Battery charger: | 110Vdc/19kW or 25kW |
| Mounting: | Under mounting |
| Cooling: | Forced air-cooling |
| Dimensions (L ×W ×H): | 3280 × 2000 × 660 mm(Traction and auxiliary integration, contact grid power supply) 2580 ×2000 ×660 mm(Traction and auxiliary integration, internal combustion power pack power supply) |
