RailMac Type B Subway Windshield
RailMac’s Type B subway gangway uses a lightweight folding canopy structure and modular design, specifically developed for medium and high-capacity subways. The product uses a high-strength aluminum alloy frame and composite sealing technology to achieve air tightness improved by 150% and noise reduction to more than 38 decibels. It has the characteristics of quick assembly and disassembly and strong versatility.
Advantages of Type B Subway Windshield
Type B Subway Windshield features a flexible structure, well adapting to the common urban subway curve radius of R110m ~ R150m, including S-shaped curves. It fits tightly between carriages in various track environments (newly-built or reconstructed lines), ensuring normal train operation and avoiding air leakage and abnormal noise caused by poor curve adaptability, with strong environmental applicability.
It complies with DIN5510-2 standard (flammability rating S3) with excellent flame retardancy, delaying fire spread to secure escape time. Its structural strength resists operational impact and collisions, preventing passenger falls. Meeting IEC61133 waterproof requirements, it avoids equipment failures from water intrusion, fully safeguarding passenger travel safety.
With NRw ≥32dB ~ 40dB sound insulation, it isolates operational and external noise, creating a quiet environment. Its reasonable passage size (width ≥1300mm ~ 1500mm, height ≥1900mm) ensures smooth passenger flow. Optional thermal insulation (K ≤3.0W/(m·K)) adjusts carriage temperature, reducing air-conditioning energy consumption and enhancing thermal comfort.
Offering integral (excellent airtightness) and split (easy maintenance) types, it fits diverse projects (e.g., Zhengzhou Line 1, Wuhan Line 1). The split type allows local disassembly; the integral type adopts modular design for quick replacement. Wear-resistant, corrosion-resistant materials reduce maintenance frequency, lowering life-cycle costs.
Technical Specifications
| Type of Gangway: | Half-Gangway, Completed Gangway |
| Distance Between End Walls: | 520mm – 700mm |
| Clear Passage Width: | ≥1300mm – 1500mm |
| Clear Passage Height: | ≥1900mm |
| Curve Passing Ability: | R110m – R150m |
| Fire Performance: | Complies with DIN5510-2, Flammability Class S3 (Industry Standard) |
| Sound Insulation Performance: | NRw ≥32dB – 40dB |
| Thermal Insulation Performance: | Heat transfer coefficient K ≤3.0W/(m・K) |
| Water Resistance Performance: | No leakage (Compliant with IEC61133) |
Vehicle Auxiliary Power System-Video-DB2/3 | CR300BF/CR400BF
Vehicle Auxiliary Power System-Video-DB2/3 wiper device is CR300BF, CR400BF standard EMU supporting product produced for CRRC Tangshan Company and Changke Corporation. The wiper system is composed of the following components: a drive device, a scraper arm, a scraper frame, a scraper, a pump, a liquid level display switch, a junction box and a wiper switch. Among them, the core component of the wiper motor has been implemented domestically.
Tourist Train
The CRRC Zhuzhou 1435 series dual rail sightseeing car inherits the technological DNA of CRRC high-speed rail and is designed for in-depth sightseeing in scenic areas. The innovative double-decker structure features a panoramic window on the first floor for comfortable all-weather sightseeing and an open-top layout on the second floor for a 360° immersive natural experience.
Traction System
CHSR's CHSR™ CC750 air-cooled converter is a highly integrated traction and auxiliary "two-in-one" core equipment. It condenses key power conversion functions into a single compact enclosure, providing robust and stable power for intercity trains through standardized modular design, intelligent air cooling (IP65 protection), and mature and reliable components.
Bogie and Braking System
CRRC Braking Systems Co., Ltd.'s disc brake calipers use hydraulic or pneumatic-hydraulic conversion drive technology.They integrate automatic gap adjustment, modular caliper body, and three-point floating suspension design to ensure precise contact between brake pads and discs.
Track Body Components
RailMac provides railway solutions, focusing on one-stop Lince/Huanji wiper services (R&D, production, maintenance) plus rail air conditioning. It offers diverse wipers (DC110V/74V/24V, pneumatic) and developed China’s first IP-owned CRH3 EMU wiper, with products batch-loaded in CRH380/CR400BF/CR300BF.
Maintenance Equipment
RunWell is a high-tech enterprise specializing in the fields of rail transit and military industry. Its car lift machine products integrate German drive technology (such as the Demag three-in-one modular system) with intelligent control, supporting heavy-duty conditions of over 150 tons.
Railway Components
CRRC specializes in innovative environmental protection sanitation systems. Products like vacuum water - saving toilet modules and waterless ecological toilets, made in an orderly factory, are applied in railways, public facilities, and outdoor scenarios.
RailMac
Partnering with global leaders, RailMac offers superior railway equipment and solutions at competitive prices. It hit milestones like Thailand’s 2017 first local train, pioneered SEA new energy trains, and joined Russia’s high-speed rail project, boosting its railway industry presence.

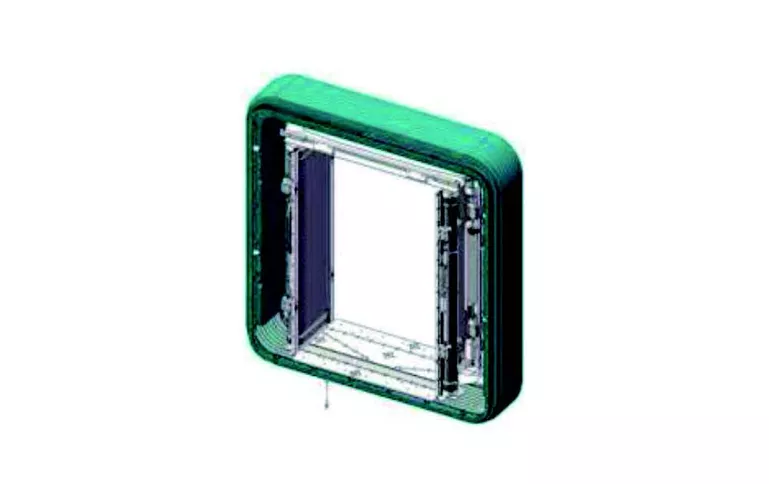

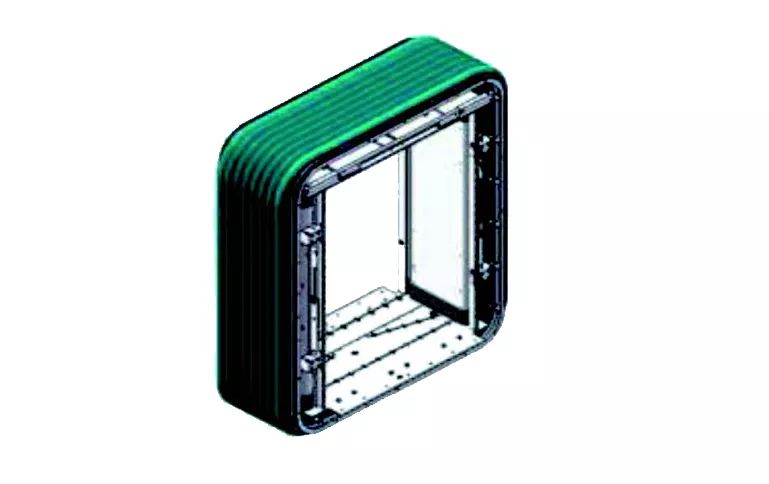

Model | Distance Between End Walls | Curve Passing Ability |
| Type B Subway Windshield | 520 – 700 mm | R110 – R150 m |
| Type A Subway Windshield | 780–920 mm | R140 – R150 m |
| CR200 Fairing | 800 mm | Curve R145 m |
| CR200 Gangway | 800 mm | Curve R145 m |
| CR300 Fairing | 650 mm | Curve R180 m |
| CR300 Gangway | 650 mm | Curve R180 m |
| CR400BF Fairing | 650 mm | Curve R180 m |
| CR400BF Gangway | 650 mm | Curve R180 m |
| ——END—— | ||
Line | Zhengzhou Line 1 Addition | Beijing Line 6 Addition | Chongqing AB Project | Wuhan Line 1 Phase IV |
|---|---|---|---|---|
| Gangway Type | Completed Gangway | Completed Gangway | Completed Gangway | Half-Gangway |

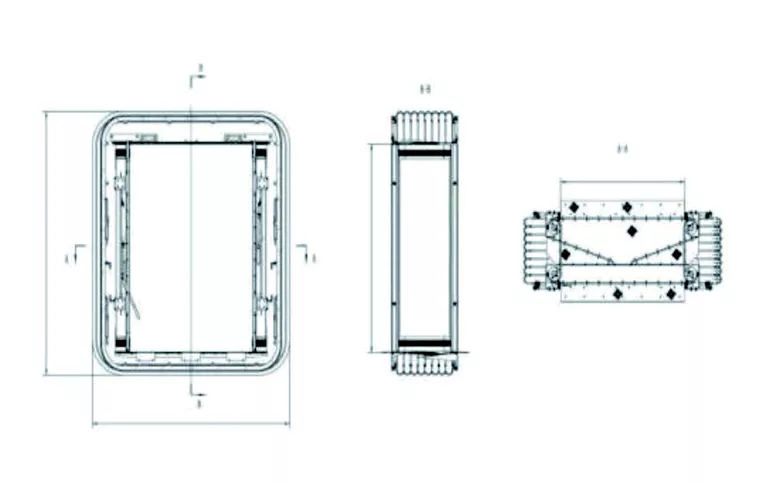

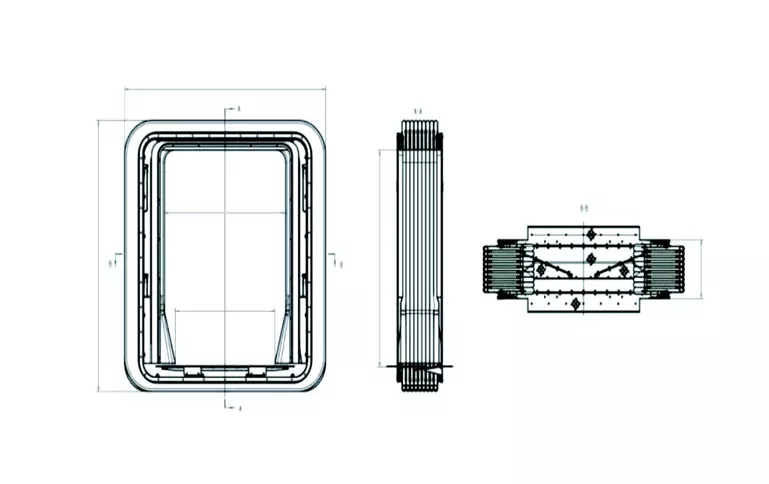

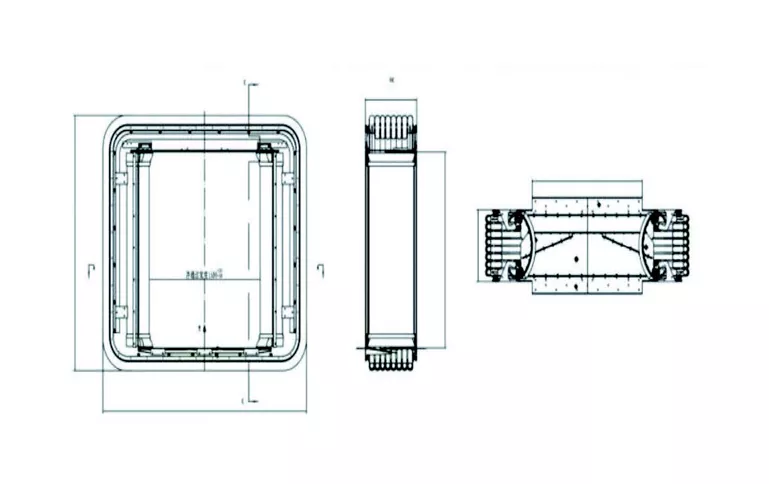

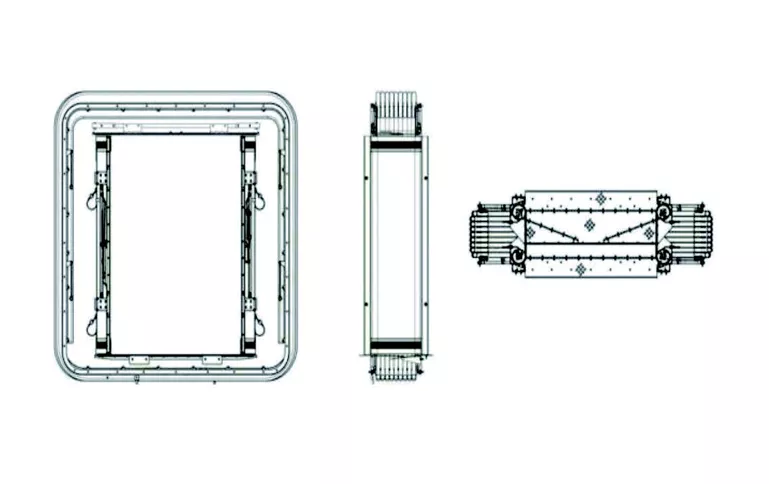

| Distance Between End Walls (mm) | 520 | 700 | 700 | 520 |
| Clear Passage Width (mm) | ≥1500 | ≥1300 | 1500 | ≥1400 |
| Clear Passage Height (mm) | ≥1900 | ≥1900 | 1900 | ≥1900 |
| Curve Passing Ability | Curve R150m + transition straight line 5m + curve R150m | Curve R150m + transition straight line 5m + curve R150m | Curve R150m + transition straight line 3m + curve R150m | Curve R110m + transition straight line 13.5m + curve R110m |
| Fire Performance | Complies with DIN5510-2, flammability rating S3 | Complies with DIN5510-2, flammability rating S3 | Complies with DIN5510-2, flammability rating S3 | Complies with DIN5510-2, flammability rating S3 |
| Sound Insulation Performance (NRw) | ≥36dB | ≥32dB | ≥40dB | ≥32dB |
Vehicle Model | Type of Sidewall | Distance of the end of car | Curve | Sound Insulation | Fire Protection |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 36dB | DIN5510 |
| B | Flexible | 800mm | R120m, R120m-10m-R120m | 40dB | DIN5510 |
| B | Flexible | 700mm | R150m, R150m-22m-R150m | 32dB | DIN5510 |
| B | / | 520mm | R110m, R110m-13.5m-R150m | 32dB | DIN5510 |
| B | Flexible | 520mm | R110m, R150m-10m-R150m | 36dB | DIN5510 |
| B | / | 520mm | R150m, R150m-5m-R150m | 36dB | DIN5510 |
| B | Flexible | 700mm | R150m, R150m-5m-R150m | 32dB | DIN5510 |
| B | Flexible | 520mm | R110m, R150m-3m-R150m | 36dB | DIN5510 |
| B | Flexible | 520mm | R110m, R150m-3m-R150m | 36dB | DIN5510 |
| B | Flexible | 700mm | R150m, R150m-3m-R150m | 36dB | DIN5510 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 36dB | DIN5510 |
| B | Flexible | 800mm | R120m, R120m-10m-R120m | 40dB | DIN5510 |
| B | / | 520mm | R135m, R150m-3m-R150m | 35dB | DIN5510 |
| B | Flexible | 500mm | R70m, R120m-0m-R120m | 35dB | Korean standard |
| B | Flexible | 520mm | R150m | 30dB | DIN5510 |
| B | Flexible | 520mm | R110m, R150m-5m-R150m | 36dB | DIN5510 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 40dB | DIN5510 |
| B | / | 520mm | R110m, R110m-13.5m-R150m | 32dB | DIN5510 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 36dB | EN45545 HL2 |
| B | / | 520mm | R120m, R120m-10m-R120m | 32dB | DIN5510 |
| B | / | 700mm | R75m, R75m-5m-R75m | 32dB | DIN5510 |
| B | Flexible | 520mm | R150m, R150m-3m-R150m | 36dB | DIN5510 |
| B | Flexible | 700mm | R150m, R150m-10m-R150m | 36dB | DIN5510 |
| B | Flexible | 700mm | R150m, R150m-10m-R150m | 36dB | DIN5510 |
| B | Flexible | 700mm | R150m, R150m-10m-R150m | 32dB | DIN5510 |
| B | / | 520mm | R135m, R150m-36m-R150m | 32dB | DIN5510 |
| B | Flexible | 700mm | R150m, R150m-10m-R150m | 32dB | DIN5510 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 36dB | EN45545 HL2 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 36dB | DIN5510 |
| B | / | 520mm | R200m, R200m-10mm-R200m | 34dB | DIN5510 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 40dB | EN45545 HL2 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 42dB | DIN5510/EN45545 HL2 |
| B | three-piece Type | 520mm | R110m, R150-5m-R150m | 30dB | DIN5510 |
| B | / | 520mm | R120m, R120m-10m-R120m | 32dB | DIN5510 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 36dB | EN45545 HL2 |
| B | Flexible | 700mm | R120m, R120m-5m-R120m | 38dB | DIN5510 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 36dB | DIN5510/EN45545 HL2 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 37dB | EN45545 HL2 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 40dB | EN45545 HL2 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 35dB | EN45545 HL2 |
| B | Flexible | 500mm | R80m, R120m-0m-R120m | 35dB | Korean standard |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 40dB | EN45545 HL2 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 36dB | EN45545 HL2 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 36dB | DIN5510/EN45545 HL2 |
| B | Flexible | 700mm | R120m, R120m-5m-R120m | 38dB | DIN5510 |
| B | / | 500mm | R120m | 35dB | EN45545 HL2 |
| B | Flexible | 500mm | R80m, R120m-0m-R120m | 35dB | Korean standard |
| B | Flexible | 500mm | R125m, R125m-0m-R125m | 35dB | Korean standard |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 40dB | EN45545 HL3 |
| B | / | 700mm | R75m, R75m-10m-R75m | 32dB | EN45545-2 HL2 |
| B | / | 520mm | R120m, R120m-10m-R120m | 34dB | EN45545-2 HL3 |
| B | Flexible | 520mm | R150m | 40dB | EN45545 HL2 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 36dB | DIN5510/EN45545 HL2 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 36dB | DIN5510/EN45545 HL2 |
| B | Flexible | 500mm | R80m, R120m-0m-R120m | 35dB | Korean standard |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 40dB | EN45545 HL3 |
| B | Flexible | 520mm | R150m, R150m-5m-R150m | 42dB | EN45545 HL3 |
| B | / | 520mm | R200m, R200m-10m-R200m | 34dB | DIN5510 |
| ——END—— | |||||
Coming soon…
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
