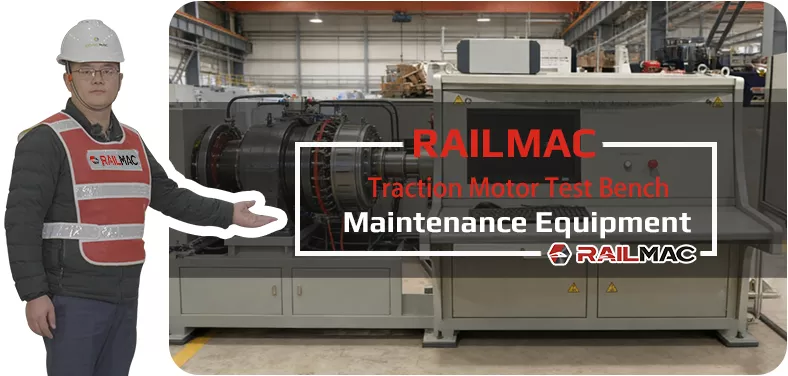

Traction Motor Test Bench
Traction motor test bench is used for no-load and no-rotation performance test after overhauling, observing and listening to the mechanical break-in situation at different speeds; the test is conducted in accordance with the requirements of the test outline of the product under test, including the test of power, vibration test, temperature test, speed test and noise test.
Advantages of Traction Motor Test Bench
- High – Precision Speed Measurement: Equipped with advanced speed sensors and precise measuring instruments, it can accurately measure the rotational speeds of the input shaft and output shaft. The rotational speed measurement accuracy can reach ±0.1r/min, ensuring accurate calculation of the transmission ratio and speed changes, and providing reliable data support for evaluating the performance of the transmission system. Whether it is a transmission system operating at low speed or high speed, it can precisely capture speed data, helping R & D personnel deeply understand the speed transmission characteristics of the transmission system.
Features of Traction Motor Test Bench
- Highly Automated Operation: It adopts an advanced automatic control system. Operators only need to set the test parameters on the human – machine interface, and the test bench can automatically complete the entire test process, including equipment start – up, loading, data collection, analysis, and storage. The automated system can accurately control the test conditions according to the preset program, reducing human operation errors, improving test efficiency and data consistency. At the same time, continuous batch testing can be realized to meet the needs of performance testing of transmission systems in mass production.
RMSW-75B | HXD2/HXD2B
RMSW-75B pneumatic wiper is suitable for HXD2 and HXD2B locomotives. It is specially designed for high-speed trains and heavy-load locomotives. It has strong wiper ability and reliable performance. In severe weather conditions such as heavy rain, heavy snow, and hail, it can keep the front window of the train clear, ensure the driver’s good vision, and ensure driving safety.
Tourist Train
The CRRC Zhuzhou 1435 series dual rail sightseeing car inherits the technological DNA of CRRC high-speed rail and is designed for in-depth sightseeing in scenic areas. The innovative double-decker structure features a panoramic window on the first floor for comfortable all-weather sightseeing and an open-top layout on the second floor for a 360° immersive natural experience.
Traction System
CHSR's CHSR™ CC750 air-cooled converter is a highly integrated traction and auxiliary "two-in-one" core equipment. It condenses key power conversion functions into a single compact enclosure, providing robust and stable power for intercity trains through standardized modular design, intelligent air cooling (IP65 protection), and mature and reliable components.
Bogie and Braking System
CRRC Braking Systems Co., Ltd.'s disc brake calipers use hydraulic or pneumatic-hydraulic conversion drive technology.They integrate automatic gap adjustment, modular caliper body, and three-point floating suspension design to ensure precise contact between brake pads and discs.
Track Body Components
RailMac provides railway solutions, focusing on one-stop Lince/Huanji wiper services (R&D, production, maintenance) plus rail air conditioning. It offers diverse wipers (DC110V/74V/24V, pneumatic) and developed China’s first IP-owned CRH3 EMU wiper, with products batch-loaded in CRH380/CR400BF/CR300BF.
Maintenance Equipment
RunWell is a high-tech enterprise specializing in the fields of rail transit and military industry. Its car lift machine products integrate German drive technology (such as the Demag three-in-one modular system) with intelligent control, supporting heavy-duty conditions of over 150 tons.
Railway Components
CRRC specializes in innovative environmental protection sanitation systems. Products like vacuum water - saving toilet modules and waterless ecological toilets, made in an orderly factory, are applied in railways, public facilities, and outdoor scenarios.
RailMac
Partnering with global leaders, RailMac offers superior railway equipment and solutions at competitive prices. It hit milestones like Thailand’s 2017 first local train, pioneered SEA new energy trains, and joined Russia’s high-speed rail project, boosting its railway industry presence.
General Specifications of Traction Motor Test Bench
| Output Voltage | Output Current | Output Frequency | Braking time | Running time | Rotation speed | Temperature measurement | Vibration detection range |
| V / % | A | Hz | s | h | r / min | ℃ | mm / s |
| 0～380 V | 0～150 A | 0～150 Hz | 0～60 s | 0～5 h | 0～6000 r / min | -20 ℃ ～200 | 0-20 mm/s |
| ——END—— | |||||||
