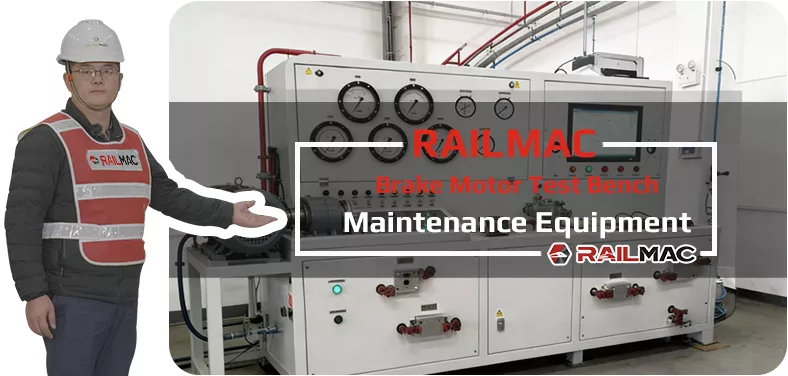

RailMac Brake Motor Test Bench | RailMac Train Parts

Advantages of Brake Motor Test Bench

All – round Performance Analysis: By using professional testing equipment and technologies, it can conduct in – depth analysis of various key performances of the brake motor, such as starting performance, braking response time, running stability, and braking torque retention ability. In the starting performance test, the time from the motor’s standstill to the rated speed is accurately measured, with the error controlled within milliseconds, helping to evaluate the motor’s ability to quickly start under different working conditions. In the braking response time test, the interval from the issuance of the braking command to the actual braking action of the motor is precisely captured, providing data support for ensuring the safe braking of the equipment.

Features of Brake Motor Test Bench

Modular Design: The test bench adopts a modular structure, and different test function modules are independently designed, such as the power module, loading module, data acquisition module, environment simulation module, etc. The modules are connected through standardized interfaces, which is convenient for flexible combination and expansion according to actual test requirements. If new test functions need to be added, only the corresponding function modules need to be added, without the need for large – scale modification of the entire test bench, reducing equipment upgrade costs and improving the versatility and maintainability of the equipment.

Power supply	Wind source	Pressure measurement range	Control mode
AC220V 50 Hz 2 kVA	0.75～0.95 MPa	0 ~ 1 MPa 0.15 level	electrical centralised control of all electric control mode automatic computer control
——END——

Power supply

Wind source

Pressure measurement range

Control mode

Mpa

Mpa / LV

AC220V
50 Hz 2 kVA

0.75～0.95 MPa

0 ~ 1 MPa
0.15 level

electrical centralised control of all electric control mode
automatic computer control

——END——
