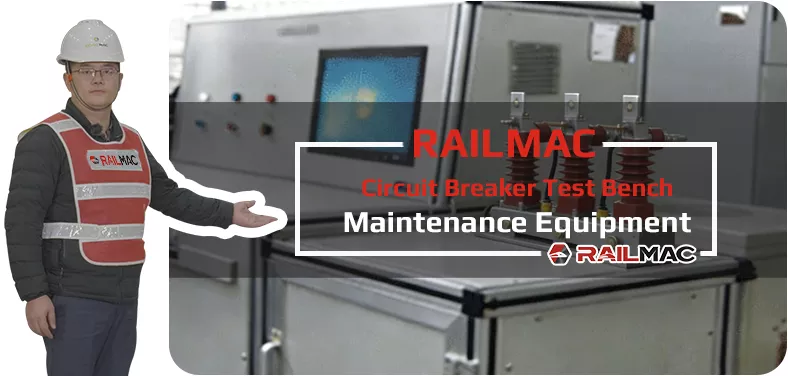

Circuit Breaker Test Bench
Circuit Breaker Test Bench, as the core equipment in the field of power system detection, plays a vital role in ensuring the stable operation of the power system. It is mainly used to conduct comprehensive and rigorous performance tests on various types of circuit breakers to ensure that the circuit breakers can accurately and reliably perform tasks in complex and changeable power environments.
From the overall structure, the main frame of the circuit breaker test bench is usually carefully made of high-quality alloy steel. This material has the characteristics of high strength and high toughness, and can effectively resist the strong impact and complex stress generated during the test process, ensuring that the test bench remains structurally stable during long-term high-intensity use and reducing the interference to the test results caused by frame deformation. The table design of the test bench is also unique. It uses a special composite material with high insulation performance and good mechanical strength. The thickness is generally more than 20mm. Its surface is finely polished, which can not only provide a stable and flat placement foundation for the circuit breaker specimen, prevent problems such as poor contact caused by uneven table surface, but also effectively isolate the electrical signals during the test process, avoid signal interference, and ensure the accuracy of the test data.
Advantages of Circuit Breaker Test Bench
- Precise Electrical Parameter Testing: Equipped with high – precision measuring devices for voltage, current, time, etc., it can accurately measure various key electrical parameters of the circuit breaker during the opening and closing processes. The voltage measurement accuracy can reach ±0.05% FS, the current measurement accuracy reaches ±0.1% FS, and the opening and closing time measurement accuracy can reach ±1ms. Through accurate data acquisition, the performance of the circuit breaker can be accurately evaluated, providing reliable data support for product R & D, quality inspection, and operation and maintenance, ensuring the stable and reliable electrical performance of the circuit breaker in practical applications.
Features of Circuit Breaker Test Bench
- Highly Automated Testing Process: It adopts an advanced automatic control system. Operators only need to set the test plan and parameters on the human – machine interface, and the test bench can automatically complete a series of operations such as the connection of the circuit breaker, test start, data collection, analysis, and test report generation. There is no need for excessive manual intervention in the entire test process, effectively reducing human operation errors, improving test efficiency, and the accuracy and consistency of data. At the same time, continuous batch testing can be realized to meet the needs of mass production and inspection.
RMSW-75B | HXD2/HXD2B
RMSW-75B pneumatic wiper is suitable for HXD2 and HXD2B locomotives. It is specially designed for high-speed trains and heavy-load locomotives. It has strong wiper ability and reliable performance. In severe weather conditions such as heavy rain, heavy snow, and hail, it can keep the front window of the train clear, ensure the driver’s good vision, and ensure driving safety.
Tourist Train
The CRRC Zhuzhou 1435 series dual rail sightseeing car inherits the technological DNA of CRRC high-speed rail and is designed for in-depth sightseeing in scenic areas. The innovative double-decker structure features a panoramic window on the first floor for comfortable all-weather sightseeing and an open-top layout on the second floor for a 360° immersive natural experience.
Traction System
CHSR's CHSR™ CC750 air-cooled converter is a highly integrated traction and auxiliary "two-in-one" core equipment. It condenses key power conversion functions into a single compact enclosure, providing robust and stable power for intercity trains through standardized modular design, intelligent air cooling (IP65 protection), and mature and reliable components.
Bogie and Braking System
CRRC Braking Systems Co., Ltd.'s disc brake calipers use hydraulic or pneumatic-hydraulic conversion drive technology.They integrate automatic gap adjustment, modular caliper body, and three-point floating suspension design to ensure precise contact between brake pads and discs.
Track Body Components
RailMac provides railway solutions, focusing on one-stop Lince/Huanji wiper services (R&D, production, maintenance) plus rail air conditioning. It offers diverse wipers (DC110V/74V/24V, pneumatic) and developed China’s first IP-owned CRH3 EMU wiper, with products batch-loaded in CRH380/CR400BF/CR300BF.
Maintenance Equipment
RunWell is a high-tech enterprise specializing in the fields of rail transit and military industry. Its car lift machine products integrate German drive technology (such as the Demag three-in-one modular system) with intelligent control, supporting heavy-duty conditions of over 150 tons.
Railway Components
CRRC specializes in innovative environmental protection sanitation systems. Products like vacuum water - saving toilet modules and waterless ecological toilets, made in an orderly factory, are applied in railways, public facilities, and outdoor scenarios.
RailMac
Partnering with global leaders, RailMac offers superior railway equipment and solutions at competitive prices. It hit milestones like Thailand’s 2017 first local train, pioneered SEA new energy trains, and joined Russia’s high-speed rail project, boosting its railway industry presence.
General Specifications of Circuit Breaker Test Bench
| Current range | Current accuracy | Contact resistance range | Contact resistance accuracy | Coil Resistance Range | Coil resistance accuracy | Coil voltage range | Coil Voltage Accuracy | Time range | Time Accuracy |
| A | % | Ω | mΩ | Ω | mΩ | V | % | ms | ms |
| DC0～3500 A | ±1 % | 1 µΩ～10 Ω | 1 mΩ | 0.1 Ω～100 Ω | 10 mΩ | DC0～150 V | ±1 % | 0-999.9 ms | 0.1 ms |
| ——END—— | |||||||||
