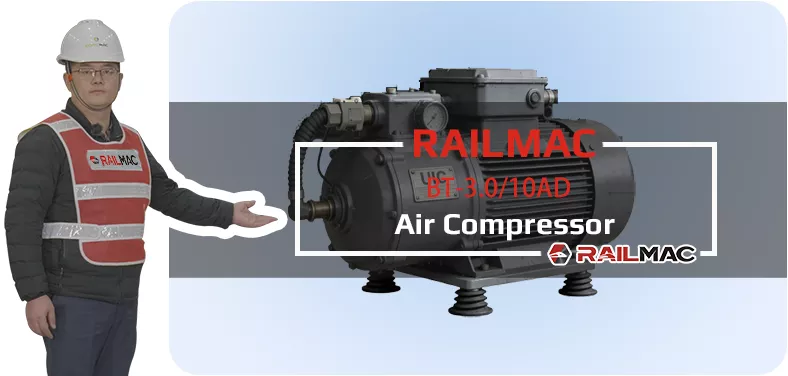

RailMac BT-3.0/10AD

The BT-3.0/10AD train air compressor is a high-performance electric-driven unit designed for harmonized electric locomotives. With a nominal volume flow rate of 3.0 m³/min and rated exhaust pressure of 1000 kPa, it delivers stable air supply for critical locomotive systems. Featuring direct drive connection, air-cooled cooling, and S1 continuous duty cycle, it operates reliably in extreme temperatures from -40°C to 55°C, meeting the rigorous demands of railway applications.

Advantages of BT-3.0/10AD

  • High Air Delivery Efficiency: 3.0 m³/min nominal volume flow rate ensures sufficient air supply for large-scale locomotive pneumatic systems.

  • Continuous Stable Operation: S1 continuous duty cycle and 30 kW rated power support uninterrupted performance during long-distance train operations.

  • Wide Temperature Adaptability: Operates reliably in extreme environments from -40°C to 55°C, suitable for diverse climatic conditions.

  • Low Maintenance Design: Direct drive connection and air-cooled cooling system reduce mechanical complexity and maintenance requirements.

  • Railway-Specific Optimization: Tailored for harmonized electric locomotives, fully compliant with industry technical standards and application requirements.

Technical Specifications

Model:BT-3.0/10AD
Nominal Volume Flow Rate:3.0 m³/min
Rated Exhaust Pressure:1000 kPa
Rated Power:30 kW
Connection Type:Direct drive
Drive Method:Electric motor
Cooling Method:Air-cooled
Duty Cycle:S1 (Continuous duty)
Ambient Temperature Range:-40 to 55 °C
Application Scope:Harmonized electric locomotives

coming soon

coming soon

coming soon

Model

Nominal Volume Flow Rate

Rated Power

Rated Exhaust Pressure

Application Scope

BT-3.0/10AD3.0 m³/min30 kW1000 kPaHarmonized electric locomotives
BT-2.4/10AD2.4 m³/min24 kW1000 kPaHarmonized electric locomotives
BT-2.6/10AZ22.6 m³/min24 kW1000 kPaDongfeng series diesel locomotives
——END——

Basic information of RailMac BT-3.0/10AD

ModelBT-3.0/10ADNominal Volume Flow Rate3.0 m³/min
Rated Exhaust Pressure1000 kPaRated Power30 kW
Connection TypeDirect driveDrive MethodElectric motor
Cooling MethodAir-cooledDuty CycleS1 (Continuous duty)
Ambient Temperature Range-40 to 55 °CApplication ScopeHarmonized electric locomotives
——END——

Coming soon…

Coming soon…

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
