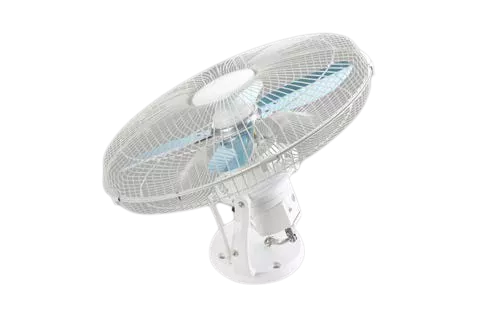

RailMac ZWH90-F Series (16-fan Configuration)
The ZWH90-F Series is a compact, multi-voltage compatible small motor (with ZWH90-18 as the representative model), featuring a rated power of 18W and supporting 24V/48V/110V multi-voltage input, which adapts to the power supply requirements of diverse scenarios. Adopting a “16-fan configuration” and paired with a rated speed of 1250r/min, this series can stably deliver a large air volume of ≥60m³. Meanwhile, its F-type winding design ensures electrical performance, combining compact size with reliable operation performance. It is suitable for driving small ventilation and heat dissipation equipment.
Advantages of ZWH90-F Series (16-fan Configuration)
Multi-Voltage Compatibility: Supports 24V/48V/110V multiple rated voltages, adapting to the power supply systems of different devices for more flexible application scenarios.
High-Efficiency Ventilation: The 16-fan configuration combined with a 1250r/min speed achieves a large air volume of ≥60m³, enabling outstanding heat dissipation/ventilation efficiency.
Low-Noise Operation: With a noise level of ≤65dB, it generates minimal operational interference, making it suitable for noise-sensitive environments.
Reliable Design: The F-type winding enhances insulation and electrical stability, ensuring durability during long-term operation.
Technical Specifications
Type | Rated Power | Rated Voltage | Rated Torque | Rated Speed | Air Volume | NoiseLevel | Winding Form |
| ZWH90-18 | 18 W | 24 V / 48 V / 110 V | 1.25/0.6/0.4 N.m | 1250 r/min | ≥60 m³ | ≤65dB | F |
| ——END—— | |||||||

Coming soon…
Coming soon…
Coming soon…
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.

Engine Sale Manual

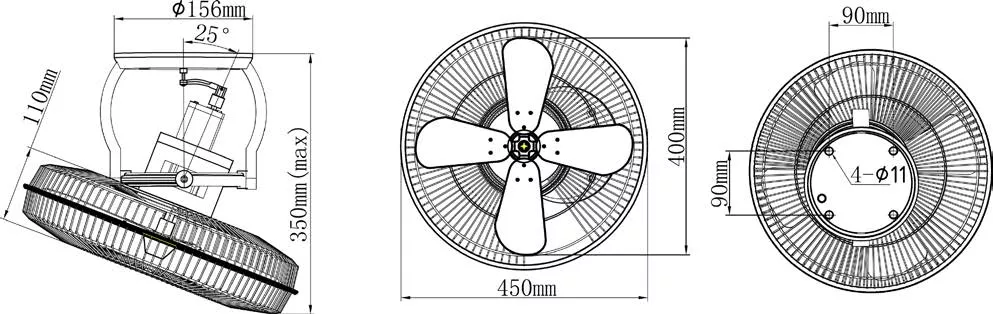

Installation Drawing
