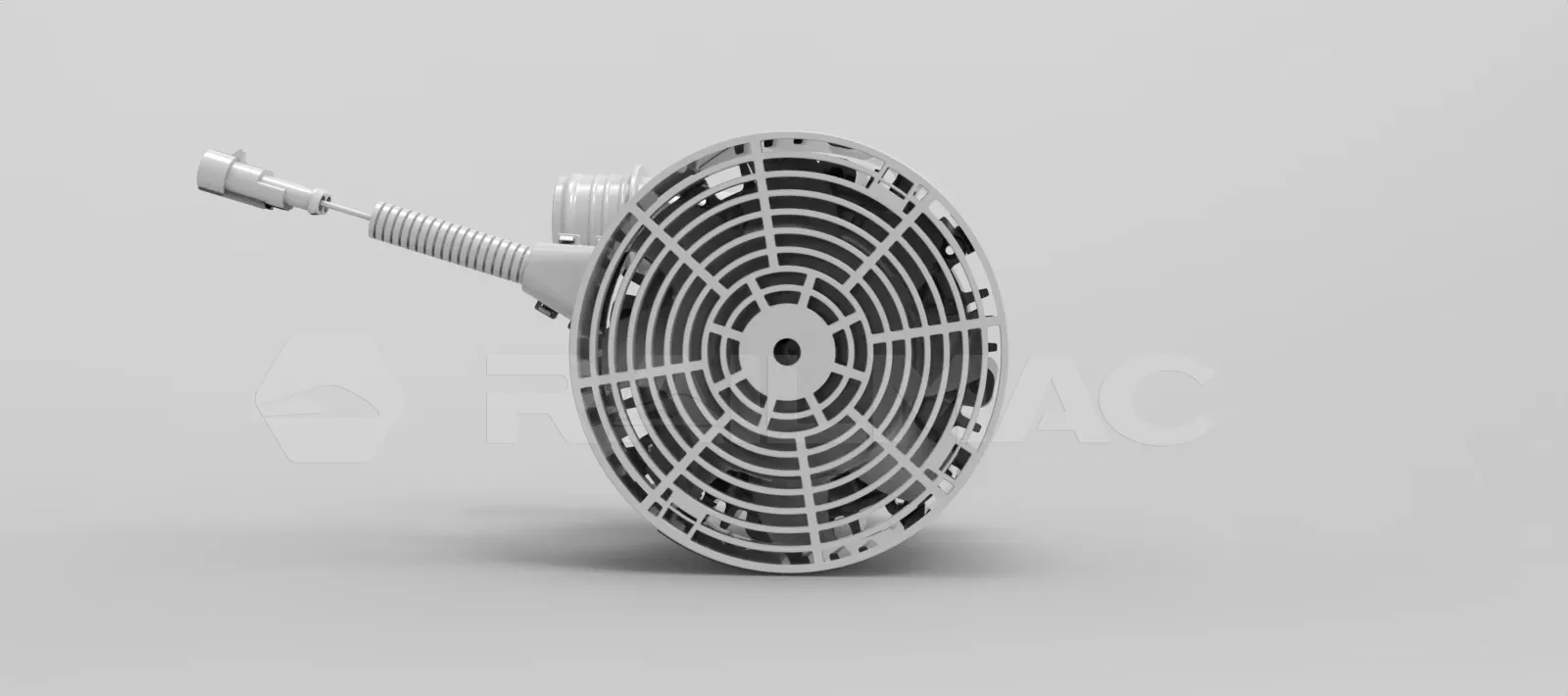

RailMac ZWH90-F Series (12-fan Configuration)
The ZWH90-F Series (12-fan Configuration) is a compact motor system tailored for ventilation and heat dissipation scenarios. Taking the ZWH90-18 model as a representative, it features a 18W rated power, supports multi-voltage inputs (24V/48V/110V), and operates at a 1500r/min rated speed. Equipped with a 12-fan structure, it delivers an air volume of ≥40 m³ while maintaining a low noise level (≤60dB), paired with a Type F winding for stable performance.
Advantages of ZWH90-F Series (12-fan Configuration)
Efficient Ventilation: The 12-fan configuration ensures an air volume of ≥40 m³, meeting heat dissipation needs for small enclosed spaces.
Low Noise Operation: With a noise level ≤60dB, it suits quiet working environments (e.g., equipment cabinets, precision instrument cooling).
Multi-Voltage Compatibility: Supports 24V/48V/110V inputs, adapting to diverse power supply setups.
Stable Performance: Type F winding and standardized parameters (1.25/0.5/0.3A rated current) ensure reliable, consistent operation.
Technical Specifications
Type | Rated Power | Rated Voltage | Rated Torque | Rated Speed | Air Volume | NoiseLevel | Winding Form |
| ZWH90-18 | 18 W | 24 V / 48 V / 110 V | 1.25/0.5/0.3 N.m | 1500 r/min | ≥40 m³ | ≤60dB | F |
| ——END—— | |||||||

Coming soon…
Coming soon…
Coming soon…
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
