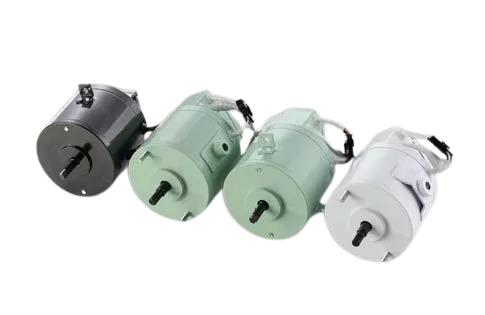

RailMac ZWH90-F (J9) Series

The ZWH90-F (J9) series is a versatile range of compact motors engineered for precision power output and speed control in industrial automation and precision instrumentation. Boasting a rated power of 18W–25W, it supports dual voltage inputs (DC 24V/48V/110V; AC 110V/220V), with a rated speed range of 1200–2000r/min and torque of 0.09–0.16N.m. Its standardized 2-phase, 4-polar Type F winding structure ensures stable, consistent performance across diverse operating conditions.

Advantages of ZWH90-F (J9) Series

  • Dual Voltage Compatibility: Supports both DC and AC input voltages, adapting to diverse power supply environments.

  • Flexible Performance Range: Covers 18W–25W power, 1200–2000r/min speed, and 0.09–0.16N.m torque, suiting multi-scenario application needs (e.g., small automation equipment, precision tools).

  • Standardized Structural Design: Uniform 2-phase/4-polar/Type F winding configuration simplifies maintenance, replacement, and batch integration.

  • Stable Operational Reliability: Optimized winding design and rated parameter matching ensure consistent torque and speed output under rated loads.

Technical Specifications

Model:ZWH90-F (J9)
Rated Power:18W ~ 25W
Rated Voltage:

24V/48V/110V (DC);

AC110V/ AC220V (AC)

Rated Torque:0.09N.m ~ 0.16N.m
Rated Speed:1200r/min ~ 2000r/min
Phase / Polar / Winding Form:

Uniformly 2-phase,

4-polar, Type F winding

coming soon

your 360 images

Vehicle Auxiliary Power System-Video-DB2/3 | CR300BF/CR400BF

Vehicle Auxiliary Power System-Video-DB2/3 wiper device is CR300BF, CR400BF standard EMU supporting product produced for CRRC Tangshan Company and Changke Corporation. The wiper system is composed of the following components: a drive device, a scraper arm, a scraper frame, a scraper, a pump, a liquid level display switch, a junction box and a wiper switch. Among them, the core component of the wiper motor has been implemented domestically.

FIND MORE

Tourist Train

The CRRC Zhuzhou 1435 series dual rail sightseeing car inherits the technological DNA of CRRC high-speed rail and is designed for in-depth sightseeing in scenic areas. The innovative double-decker structure features a panoramic window on the first floor for comfortable all-weather sightseeing and an open-top layout on the second floor for a 360° immersive natural experience.

FIND MORE

Traction System

CHSR's CHSR™ CC750 air-cooled converter is a highly integrated traction and auxiliary "two-in-one" core equipment. It condenses key power conversion functions into a single compact enclosure, providing robust and stable power for intercity trains through standardized modular design, intelligent air cooling (IP65 protection), and mature and reliable components.

FIND MORE

Bogie and Braking System

CRRC Braking Systems Co., Ltd.'s disc brake calipers use hydraulic or pneumatic-hydraulic conversion drive technology.They integrate automatic gap adjustment, modular caliper body, and three-point floating suspension design to ensure precise contact between brake pads and discs.

FIND MORE

Track Body Components

RailMac provides railway solutions, focusing on one-stop Lince/Huanji wiper services (R&D, production, maintenance) plus rail air conditioning. It offers diverse wipers (DC110V/74V/24V, pneumatic) and developed China’s first IP-owned CRH3 EMU wiper, with products batch-loaded in CRH380/CR400BF/CR300BF.

FIND MORE

Maintenance Equipment

RunWell is a high-tech enterprise specializing in the fields of rail transit and military industry. Its car lift machine products integrate German drive technology (such as the Demag three-in-one modular system) with intelligent control, supporting heavy-duty conditions of over 150 tons.

FIND MORE

Railway Components

CRRC specializes in innovative environmental protection sanitation systems. Products like vacuum water - saving toilet modules and waterless ecological toilets, made in an orderly factory, are applied in railways, public facilities, and outdoor scenarios.

FIND MORE

RailMac

Partnering with global leaders, RailMac offers superior railway equipment and solutions at competitive prices. It hit milestones like Thailand’s 2017 first local train, pioneered SEA new energy trains, and joined Russia’s high-speed rail project, boosting its railway industry presence.

FIND MORE

Type

Rated Power

Rated Voltage

Rated Torque

Rated Speed

Phase (M)

Polar (P)

Winding Form

ZWH90-1818 W24 V / 48 V / 110 V0.11/0.09 N.m1500/2000 r/min24F
ZWH90-2525 W24 V / 48V / 110 V0.16/0.12 N.m1500/2000 r/min24F
J90-1818 WAC110 V / AC220 V0.13 N.m1200-1400 r/min24
——END——

Coming soon…

Coming soon…

Coming soon…

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
