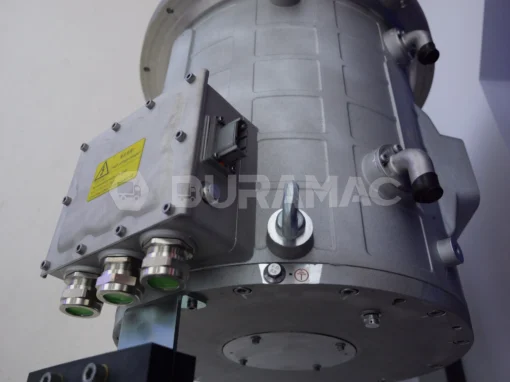

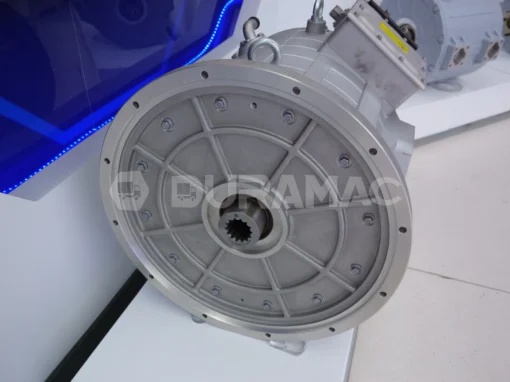

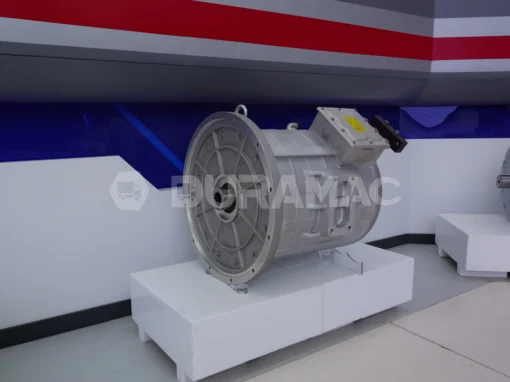

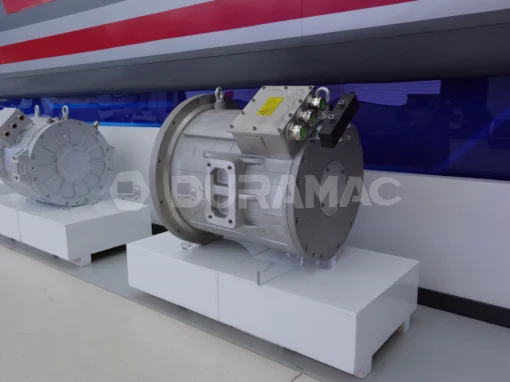

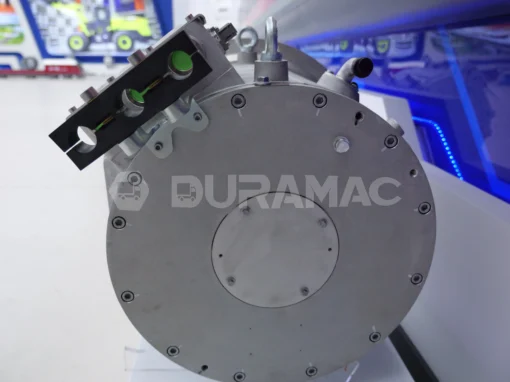

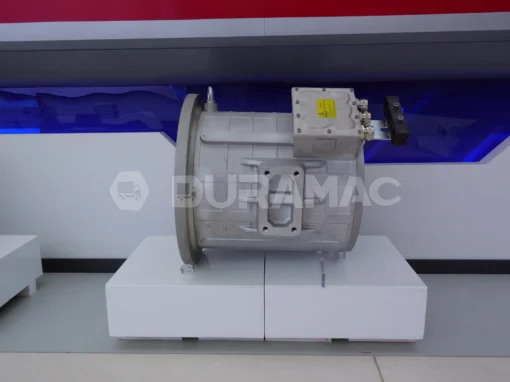

RailMac TZ400XS013A

RailMac TZ400XS013A Drive Motor is a highly integrated electric drive system featuring a 600 VDC voltage platform, with rated/peak power of 250/410 kW, rated/peak torque of 1750/2800 Nm, and rated/maximum speed of 1364/3500 rpm.
Tailored for heavy-duty electric rail freight vehicles and wide-body rail transport vehicles, this motor delivers ultra-high power and high-torque output to meet the extreme load-carrying and efficient operational demands of heavy rail logistics and transport scenarios.
As part of EMAC, RailMac provides complete powertrain systems integrated with DCEC engines, Fast-Eaton clutches, FAST-CAT transmissions, DANA axles and Komman air suspension systems. With electrification emerging as an irreversible trend in rail transit, RailMac is also deeply engaged in the R&D and deployment of EV powertrain systems for rail applications.
We provide full life cycle services for all customers, covering the entire process from product design and power system supply, to on-site installation and commissioning, to after-sales service training and spare parts provision, and extending to troubleshooting and overhaul technical support.

Advantages of TZ400XS013A Drive Motor

Thermal management: water channels are connected, and multiple thermal management systems are integrated.
High integration: free up space, can be effectively integrated into various vehicles and industrial equipment, and optimize the layout and performance of the whole vehicle.
Simple structural design and easy maintenance: simplify connectors, integrate structure and process, reduce suppliers, and improve product qualification rate.
Professional R&D capabilities: through NVM simulation and verification, set vehicle NVM targets, optimize NVH of electric drive system and motor modal design, and perform modal testing, electric drive bench NVH testing, and vehicle NVH testing.
Innovative technology: The company actively adopts innovative technologies, such as rotor topology technology, flat wire winding technology, and oil cooling simulation capabilities.

Technical Specifications

Drive Motor Model:	TZ400XS013A
Voltage Platform:	600 VDC
Rated Power:	250 kW
Peak Power:	410 kW
Rated Torque:	1750 Nm
Peak Torque:	2800 Nm
Rated Speed:	1364 rpm
Maximum Speed:	3500 rpm
Rated Current:	415 Arms
Peak Current:	705 Arms
Motor Weight:	328 kg
Motor Size:	Φ 451 mm * 576 mm

coming soon

Motor Model	Voltage Platform	Rated Power	Peak Power	Rated Torque	Peak Torque
TZ400XS013A	600 VDC	250 kW	410 kW	1750 Nm	2800 Nm
TZ400XS010A	540 VDC	100 kW	200 kW	1061 Nm	2500 Nm
TZ400XS009A	618 VDC	200 kW	260 kW	1140 Nm	3000 Nm
TZ400XS015B	600 VDC	250 kW	360 kW	1600 Nm	2500 Nm
——END——

The TZ400XS013A Traction Motor specific main parameters are as follows.

The understanding and application of these parameters can help engineers and users better configure, operate and maintain the TZ400XS013A Traction Motor to ensure its optimal performance and safety in actual applications.

Model Parameters	TZ400XS015B	TZ400XS013A
Voltage Platform	600 VDC	600 VDC
Rated / Peak Power	250 / 360 kW	250 / 410 kW
Rated / Peak Torque	1600 / 2500 Nm	1750 / 2800 Nm
Rated / Maximum RPM	1500 / 3500 rpm	1364 / 3500 rpm
Rated / Peak Current	415 / 655 Arms	415 / 705 Arms
Motor Weight	298 kg	328 kg
Motor Dimensions	Φ453 × 524 mm	Φ451 × 576 mm

The TZ400XS013A Traction Motor the specific chart description are as follows.

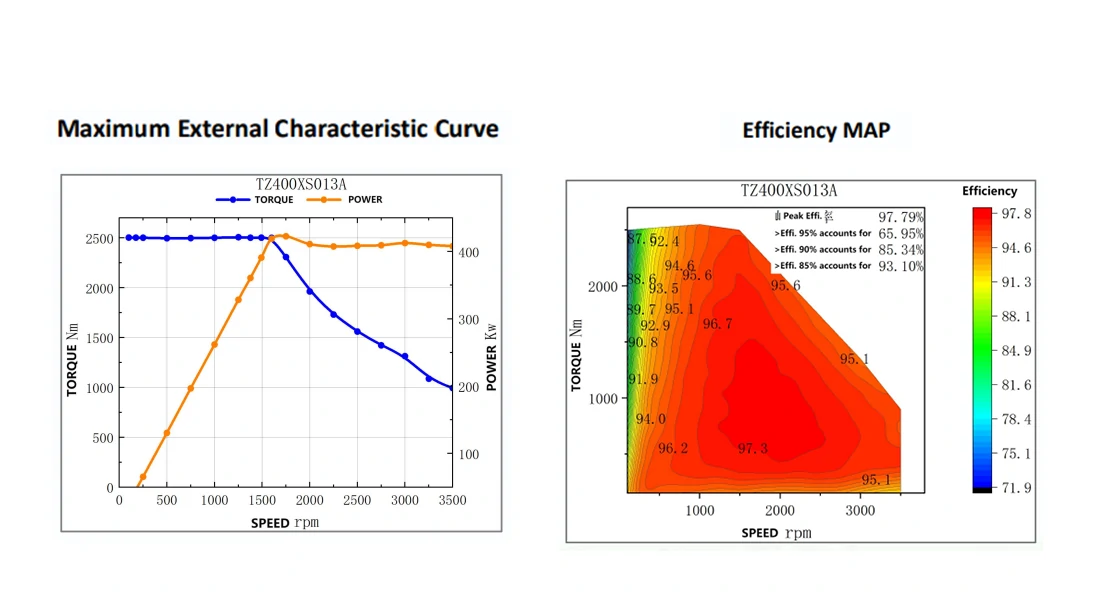

Charts can more intuitively present the characteristics of the product,understanding the maximum characteristic curve and efficiency MAP can help engineers and users better configure, operate and maintain the TZ400XS013A Traction Motor to ensure its optimal performance and safety in actual applications.

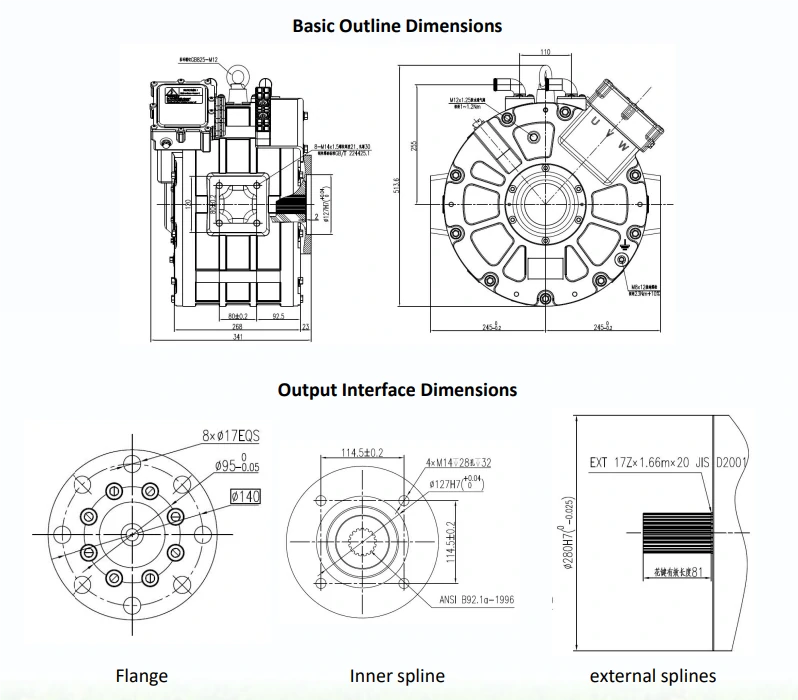

The following is a detailed illustration of the basic dimensions of the TZ400XS013A. Understanding these is critical to many aspects of the design, installation, transportation and maintenance process, and can help ensure the efficiency and safety of the equipment during use.

The specific aspects are as follows:
(1)Suitability assessment: By understanding the dimensions of the drive motor, it can be evaluated whether it can fit into a specific installation space or mechanical structure. This is critical for engineering design and layout to ensure that the equipment can be installed and operated correctly.
(2)Space planning: Basic dimensions can help plan the layout of the equipment, including the spatial relationship with other components or systems. This is important for factory equipment layout, vehicle electrical system design, etc.
(3)Ease of installation: Knowing the size of the drive motor can help prepare appropriate mounting brackets, fixing equipment or develop installation procedures in advance. This helps to simplify the installation process and reduce possible rework or adjustments.
(4)Transportation and storage: Knowing the dimensions also helps plan the transportation and storage of the equipment, ensuring that the equipment is not damaged or the risk of damage during handling and storage is minimized.
