RailMac TZ180XS014E

RailMac TZ180XS014E Drive Motor is a highly integrated electric drive system featuring a 350 VDC voltage platform, with rated/peak power of 40/75 kW, rated/peak torque of 48/130 Nm, and rated/maximum speed of 8100/12000 rpm.
Tailored for high-speed rail auxiliary vehicles, rail hybrid locomotives, light rail logistics equipment and rail engineering machinery, this motor delivers efficient and stable power output to satisfy the diversified operational needs of rail transit scenarios.
As part of EMAC, RailMac provides complete powertrain systems integrated with DCEC engines, Fast-Eaton clutches, FAST-CAT transmissions, DANA axles and Komman air suspension systems. With electrification emerging as an irreversible trend in rail transit, RailMac is also deeply engaged in the R&D and deployment of EV powertrain systems for rail applications.
We provide full life cycle services for all customers, covering the entire process from product design and power system supply, to on-site installation and commissioning, to after-sales service training and spare parts provision, and extending to troubleshooting and overhaul technical support.

Advantages of TZ180XS014E

Thermal management: water channels are connected, and multiple thermal management systems are integrated.
High integration: free up space, can be effectively integrated into various vehicles and industrial equipment, and optimize the layout and performance of the whole vehicle.
Simple structural design and easy maintenance: simplify connectors, integrate structure and process, reduce suppliers, and improve product qualification rate.
Professional R&D capabilities: through NVM simulation and verification, set vehicle NVM targets, optimize NVH of electric drive system and motor modal design, and perform modal testing, electric drive bench NVH testing, and vehicle NVH testing.
Innovative technology: The company actively adopts innovative technologies, such as rotor topology technology, flat wire winding technology, and oil cooling simulation capabilities.

Technical Specifications

Drive Motor Model:	TZ180XS014E
Voltage Platform:	350 VDC
Rated Power:	40 kW
Peak Power:	75 kW
Rated Torque:	48 Nm
Peak Torque:	130 Nm
Rated Speed:	8100 rpm
Maximum Speed:	12000 rpm
Rated Current:	130 Arms
Peak Current:	280 Arms
Motor Weight:	27 kg
Motor Size:	Φ 236 mm * 207 mm

coming soon

Motor Model	Voltage Platform	Rated Power	Peak Power	Rated Torque	Peak Torque
TZ180XS014E	350 VDC	40 kW	75 kW	48 Nm	130 Nm
TZ180XS009-A	618 VDC	60 kW	120 kW	120 Nm	200 Nm
TZ180XS009-B	320 VDC	60 kW	30 kW	100 Nm	225 Nm
TZ180XS017A	540 VDC	20 kW	40 kW	150 Nm	300 Nm
——END——

Main Technical Parameters of TZ180XS014E Traction Motor

Accurate understanding and application of these parameters are crucial for engineers and users to conduct reasonable configuration, safe operation and efficient maintenance of the motor, so as to ensure its optimal performance and operational safety in practical applications.

ModelParameters	TZ290XS024B
Voltage Platform	350 VDC
Rated / Peak Power	40 / 75 kW
Rated / Peak Torque	48 / 130 Nm
Rated / Maximum RPM	8100 / 12000 rpm
Rated / Peak Current	130 / 280 Arms
Motor Weight	27 kg
Motor Dimensions	Φ236 × 207 mm

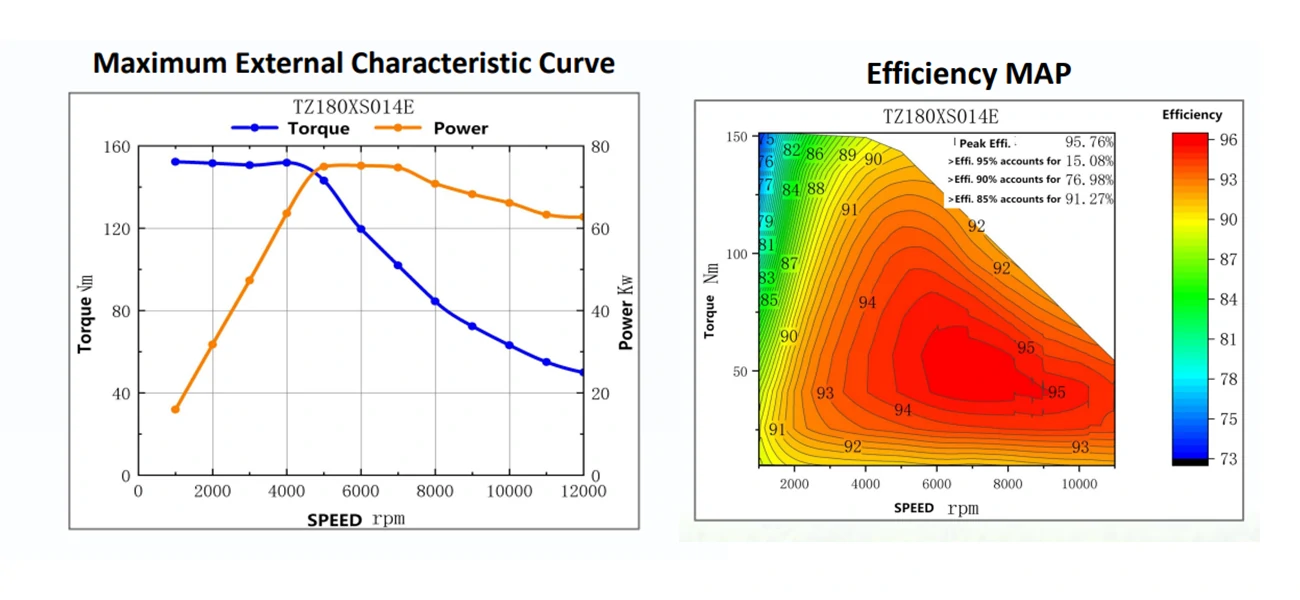

The TZ180XS014E Traction Motor the specific chart description are as follows.

Charts can more intuitively present the characteristics of the product,understanding the maximum characteristic curve and efficiency MAP can help engineers and users better configure, operate and maintain the TZ180XS014E Traction Motor to ensure its optimal performance and safety in actual applications.

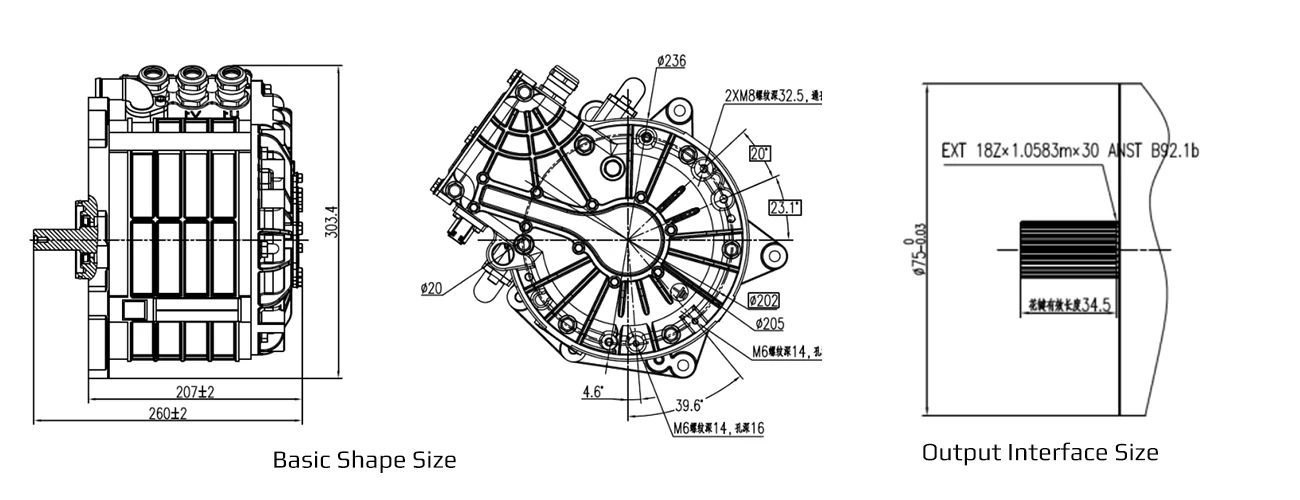

The following is a detailed illustration of the basic dimensions of the TZ180XS014E. Understanding these is critical to many aspects of the design, installation, transportation and maintenance process, and can help ensure the efficiency and safety of the equipment during use.

The specific aspects are as follows:
(1)Suitability assessment: By understanding the dimensions of the drive motor, it can be evaluated whether it can fit into a specific installation space or mechanical structure. This is critical for engineering design and layout to ensure that the equipment can be installed and operated correctly.
(2)Space planning: Basic dimensions can help plan the layout of the equipment, including the spatial relationship with other components or systems. This is important for factory equipment layout, vehicle electrical system design, etc.
(3)Ease of installation: Knowing the size of the drive motor can help prepare appropriate mounting brackets, fixing equipment or develop installation procedures in advance. This helps to simplify the installation process and reduce possible rework or adjustments.
(4)Transportation and storage: Knowing the dimensions also helps plan the transportation and storage of the equipment, ensuring that the equipment is not damaged or the risk of damage during handling and storage is minimized.
