RailMac RMC3-DB2/3 | CR300BF/CR400BF

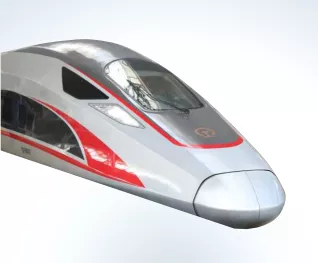

RMC3-DB2/3 wiper device is CR300BF, CR400BF standard EMU supporting product produced for CRRC Tangshan Company and Changke Corporation. The wiper system is composed of the following components: a drive device, a scraper arm, a scraper frame, a scraper, a pump, a liquid level display switch, a junction box and a wiper switch. Among them, the core component of the wiper motor has been implemented domestically.
Advantages of RailMac Wiper
RailMac is a company focused on the railway industry, providing tailor-made wiper solutions to meet the needs of a wide range of vehicles and machinery used in the railway environment. We offer a variety of wiper product lines including high-speed EMUs, locomotives, urban rail transit, etc., to meet the needs of different customers. RailMac offers a one-stop service covering the entire range of wipers under the Lince and Huanji brands, with different options depending on your budget. Its products cover high-speed EMUs, Harmony series AC locomotives, electric internal combustion DC locomotives, urban metro vehicles, air trams and other fields, and provide different voltage levels of electric wipers, including DC110V, DC74V, DC24V, and pneumatic electronic wipers driven by compressed air and controlled by voltage regulation. RailMac has independent intellectual property rights of CRH3 type EMU wiper, which is the first high-speed vehicle wiper product for high-speed trains in China, has completed loading and application evaluation, and obtained relevant qualifications. At present, CRH380 Harmony series, CR400BF/CR300BF Fuxing series EMU wiper products have achieved batch loading. The company provides a 3-year product warranty period and fulfills the promise of “free warranty” during the warranty period. RailMac’s products have been exported to Kazakhstan, Pakistan, Thailand, Sudan, Portugal and other overseas countries, and have been widely used by 18 railway bureaus of China National Railway Group, demonstrating its professional ability in the field of railway accessories and comprehensive satisfaction of customer needs.
Technical Specifications
| Product Model: | RMC3-DB2/3 |
| Product Type: | Electric Wiper |
| Rated Voltage: | 110V |
| Service Life: | Wiper 2×10^6 times, Blade 5×10^5 |
| Function Mode: | Car wash, stop, intermittent, slow, fast |
| Service Temperature: | -40°C~+70°C |
| Packing Size(L * W * H): | N/A |
| Wet Weight: | N/A |
| Lead Time: | 15 – 30 Working Days |
| Payment Terms: | T/T ,L/C |
Vehicle Auxiliary Power System-Video-DB2/3 | CR300BF/CR400BF
Vehicle Auxiliary Power System-Video-DB2/3 wiper device is CR300BF, CR400BF standard EMU supporting product produced for CRRC Tangshan Company and Changke Corporation. The wiper system is composed of the following components: a drive device, a scraper arm, a scraper frame, a scraper, a pump, a liquid level display switch, a junction box and a wiper switch. Among them, the core component of the wiper motor has been implemented domestically.
Tourist Train
The CRRC Zhuzhou 1435 series dual rail sightseeing car inherits the technological DNA of CRRC high-speed rail and is designed for in-depth sightseeing in scenic areas. The innovative double-decker structure features a panoramic window on the first floor for comfortable all-weather sightseeing and an open-top layout on the second floor for a 360° immersive natural experience.
Traction System
CHSR's CHSR™ CC750 air-cooled converter is a highly integrated traction and auxiliary "two-in-one" core equipment. It condenses key power conversion functions into a single compact enclosure, providing robust and stable power for intercity trains through standardized modular design, intelligent air cooling (IP65 protection), and mature and reliable components.
Bogie and Braking System
CRRC Braking Systems Co., Ltd.'s disc brake calipers use hydraulic or pneumatic-hydraulic conversion drive technology.They integrate automatic gap adjustment, modular caliper body, and three-point floating suspension design to ensure precise contact between brake pads and discs.
Track Body Components
RailMac provides railway solutions, focusing on one-stop Lince/Huanji wiper services (R&D, production, maintenance) plus rail air conditioning. It offers diverse wipers (DC110V/74V/24V, pneumatic) and developed China’s first IP-owned CRH3 EMU wiper, with products batch-loaded in CRH380/CR400BF/CR300BF.
Maintenance Equipment
RunWell is a high-tech enterprise specializing in the fields of rail transit and military industry. Its car lift machine products integrate German drive technology (such as the Demag three-in-one modular system) with intelligent control, supporting heavy-duty conditions of over 150 tons.
Railway Components
CRRC specializes in innovative environmental protection sanitation systems. Products like vacuum water - saving toilet modules and waterless ecological toilets, made in an orderly factory, are applied in railways, public facilities, and outdoor scenarios.
RailMac
Partnering with global leaders, RailMac offers superior railway equipment and solutions at competitive prices. It hit milestones like Thailand’s 2017 first local train, pioneered SEA new energy trains, and joined Russia’s high-speed rail project, boosting its railway industry presence.
Product Model | Applicable Vehicle Model | Product Type | Control Voltage | Working Environment | Wiper Lifespan |
| RMC3-DB2/3 | CR300BF, CR400BF High-Speed Trains | Electric Wiper for High-Speed Trains | Operating Voltage: DC 77~137.5V, Rated Voltage: 110V | Temperature: -40℃~+70℃, Relative Humidity: ≤96% (at room temperature) | Wiper 2×10⁶ times, Blade 5×10⁵ times |
| RMC3-FD3 | CRH3C/380B/380BL High-Speed Trains | Pneumatic Wiper for High-Speed Trains | Operating Voltage: DC 77~137.5V, Rated Voltage: 110V | Temperature: -40℃~+70℃, Relative Humidity: ≤95% (at room temperature) | ≥ 500,000 times |
| RMC3-FD1 | 160 km/h Concentrated Power High-Speed Trains | Pneumatic Wiper for High-Speed Trains | Rated Voltage: DC24V | Temperature: -40℃~+70℃, Relative Humidity: ≤95% (at room temperature) | ≥ 500,000 times |
| ——END—— | |||||
RMC3-DB2/3 Wiper Product configuration information | |

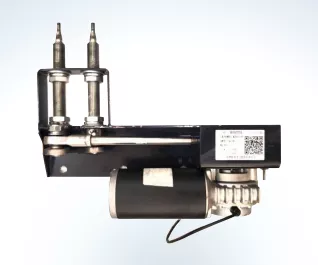

| Drive Unit | – CR300BF: RMC3-DB2-QD – CR400BF: RMC3-DB3-QD |

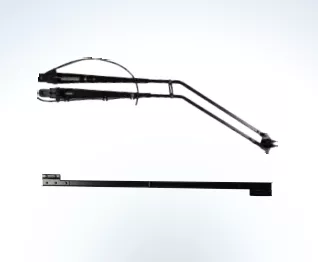

| Wiper Arm Assembly | – CR300BF: HJSG-S-16 – CR400BF: HJSG-S-15 |
| Wiper Frame Assembly | HJSP-S-15 |
| Wiper Blade Assembly | HJSP-Y-1 |
| Water Pump | HJXD-19-101 |

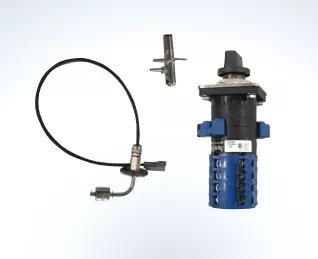

| Water Level Indicator Switch | HJXD-19-203 |
| Junction Box Assembly | HJKZ-F-000 |
| Wiper Switch | RMC3-DB2-100 |
| ——END—— | |
RMC3-DB2/3 Wiper Various data | |
| Wiping Frequency | “CR300BF: High Frequency 40±5 times/minute, Low Frequency 25±5 times/minute, CR400BF: High Frequency 36±5 times/minute, Low Frequency 20±5 times/minute,Intermittent Wiping Frequency: 6~8 times/minute Difference between High and Low Frequency: ≥10 times/minute” |
| Wiping Angle | CR300BF：62~67° CR400BF：50±5° |
| Wiper Blade Length | 660mm |
| Wiping Length | CR300BF：1020±2mm CR400BF：1110±2mm393 N.m |
| Working Mode | Washing, Stop, Intermittent, Slow, Fast |
| Manufacturer Information | Zhuzhou Huanji Electric Co., LTD |
| Noise | ≤73dB(A) |
| ——END—— | |
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
