RailMac Fuxing Standard EMU Toilet Waste Collection System
The Fuxing high-speed train is a trainset with completely independent intellectual property rights. Its design and manufacturing are entirely based on Chinese standards, and the product has reached international leading levels. As a crucial supporting facility for the standard high-speed train, Huateng Company participated in the entire development process of the standard high-speed train’s toilet system. Currently, all prototypes have been completed, and the train has obtained installation qualifications and performance records for all models from five major high-speed train manufacturers in China.

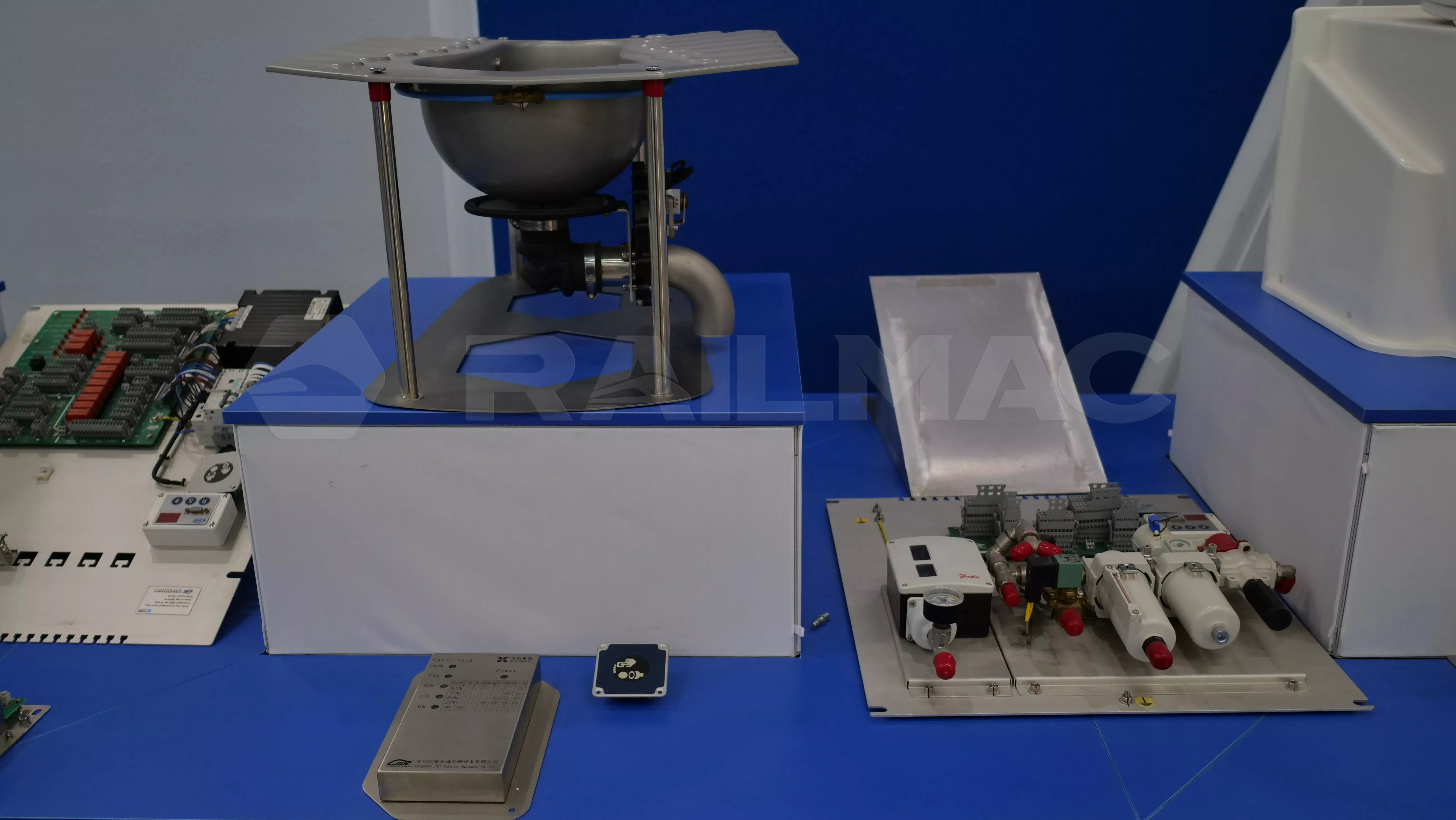

The toilet system of the Fuxing high-speed train generally adopts a vacuum transfer working principle.
The company provides customers with comprehensive life cycle services, from design to power system supply, installation and commissioning, to after-sales service, training, and spare parts supply, as well as troubleshooting and overhaul technical support. This full range of services ensures that customer equipment maintains high reliability and long-term operating efficiency during use.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from troubleshooting to overhaul technical support.
Advantages of Fuxing Standard EMU Toilet Waste Collection System
Extreme water conservation, contributing to lightweight and energy-saving design: Each flush uses only 0.5-1 liters of water (1/10th the volume of a household toilet), significantly reducing onboard water storage, enabling lighter trains, lower energy consumption, and improved operational efficiency. A single trip on the Beijing-Shanghai line can save 4 tons of water, equivalent to 160 standard swimming pools annually, demonstrating strong adaptability to long-distance, cross-line resources.
Sealed and odorless, protecting passenger and maintenance health: Vacuum negative pressure suction of waste into a sealed waste tank prevents odor diffusion and backflow. Toilets do not need to be locked upon arrival at stations, eliminating embarrassment. Simultaneously, it isolates fecal pathogens, building a strong health protection barrier for passengers and track maintenance personnel.
Zero-emission track protection, cost reduction and resource reuse: Centralized waste storage and unified transfer at stations achieve zero emissions along the line, preventing corrosion of track components, extending maintenance cycles by more than 8 years, reducing costs by 30%, and converting waste into organic fertilizer, achieving a win-win situation for environmental protection and resource reuse.
Low energy consumption and high efficiency, adaptable to complex scenarios and highly reliable: The vacuum transfer design reduces compressed air consumption and equipment failure rate, and simplifies maintenance procedures; the water pressure is stable in high-altitude environments, and it has passed the full model certification of five major high-speed rail manufacturers, with excellent scenario adaptability and operational reliability.
Technical Specifications
| Train Model： | Fuxing Standard EMU Toilet Waste Collection System |
| Vacuum Degree: | -30 kPa to -40 kPa |
| Compressed Air Consumption: | Approx. 60 liters per flush |
| Water Consumption per Flush: | 0.45 L |
| Waste Tank Capacity: | 450 L, 600 L |
| Control Power Supply: | 24 V DC |
| Discharge Valve Diameter: | Φ50 mm |
| Maximum Horizontal Piping Length: | Not less than 10 m |
Vehicle Auxiliary Power System-Video-DB2/3 | CR300BF/CR400BF
Vehicle Auxiliary Power System-Video-DB2/3 wiper device is CR300BF, CR400BF standard EMU supporting product produced for CRRC Tangshan Company and Changke Corporation. The wiper system is composed of the following components: a drive device, a scraper arm, a scraper frame, a scraper, a pump, a liquid level display switch, a junction box and a wiper switch. Among them, the core component of the wiper motor has been implemented domestically.
Tourist Train
The CRRC Zhuzhou 1435 series dual rail sightseeing car inherits the technological DNA of CRRC high-speed rail and is designed for in-depth sightseeing in scenic areas. The innovative double-decker structure features a panoramic window on the first floor for comfortable all-weather sightseeing and an open-top layout on the second floor for a 360° immersive natural experience.
Traction System
CHSR's CHSR™ CC750 air-cooled converter is a highly integrated traction and auxiliary "two-in-one" core equipment. It condenses key power conversion functions into a single compact enclosure, providing robust and stable power for intercity trains through standardized modular design, intelligent air cooling (IP65 protection), and mature and reliable components.
Bogie and Braking System
CRRC Braking Systems Co., Ltd.'s disc brake calipers use hydraulic or pneumatic-hydraulic conversion drive technology.They integrate automatic gap adjustment, modular caliper body, and three-point floating suspension design to ensure precise contact between brake pads and discs.
Track Body Components
RailMac provides railway solutions, focusing on one-stop Lince/Huanji wiper services (R&D, production, maintenance) plus rail air conditioning. It offers diverse wipers (DC110V/74V/24V, pneumatic) and developed China’s first IP-owned CRH3 EMU wiper, with products batch-loaded in CRH380/CR400BF/CR300BF.
Maintenance Equipment
RunWell is a high-tech enterprise specializing in the fields of rail transit and military industry. Its car lift machine products integrate German drive technology (such as the Demag three-in-one modular system) with intelligent control, supporting heavy-duty conditions of over 150 tons.
Railway Components
CRRC specializes in innovative environmental protection sanitation systems. Products like vacuum water - saving toilet modules and waterless ecological toilets, made in an orderly factory, are applied in railways, public facilities, and outdoor scenarios.
RailMac
Partnering with global leaders, RailMac offers superior railway equipment and solutions at competitive prices. It hit milestones like Thailand’s 2017 first local train, pioneered SEA new energy trains, and joined Russia’s high-speed rail project, boosting its railway industry presence.
Train Model | Control Power Supply | Water Consumption per Flush | Waste Tank Capacity | Compressed Air Consumption |
| Fuxing Standard EMU Toilet Waste Collection System | 24 VDC | 0.45L | 450 L, 600 L | Approx. 60 liters per flush |
| Dry Flush Locomotive Toilet | 110 VDC, ≤350 W | ≤0.25 L | 20 L | Approx. 350 kg (including 30 L of water) |
| Vacuum-Pressure Combination Toilet System | 24 VDC | 0.8 L | 400 L, 550 L | Approx. 10 liters per flush |
| Standardized Vacuum Toilet System for Passenger Coaches | 24 VDC | 0.45L | 400 L, 550 L | Approx. 140 liters per flush |
